Article No. 32307
SLOTTED COVERS 100, neck height 200 mm, class D 400
Acess cover asymmetrical, SW 14 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

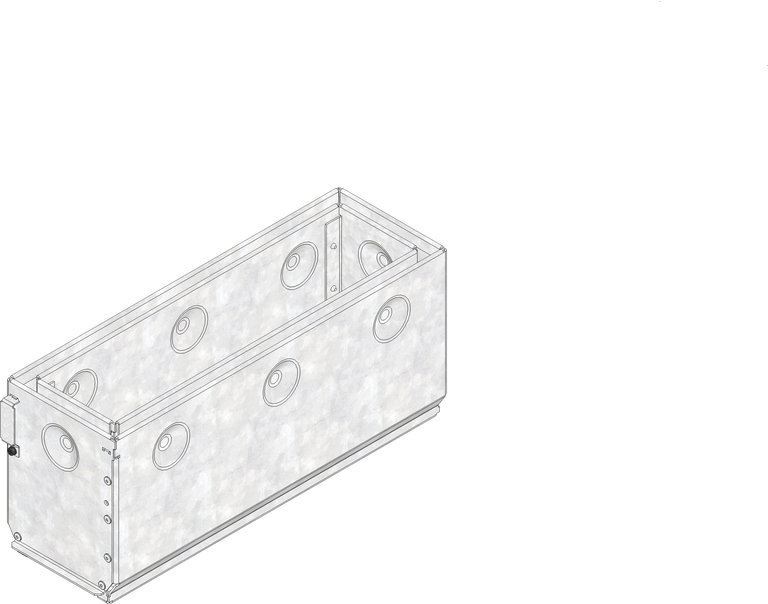

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32307
Length
500 mm
Width
163 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
10.41 kg
Material
strip galvanized steel
Intake cross-section
342.0 cm²/m
Nominal size
100
Inlet opening
500 x 14 mm
Material grating
strip galvanized steel
Regulations
in accordance with EN 1433
Sales text
Access cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access box for slotted cover slot width 14 mm, neck height 200 mm, galvanised, asymmetric, loading capacity from A 15 - D 400, length 500 mm, item no. 32307
Packaging unit
42
Declaration of Performance
