Article No. 32281
SLOTTED COVERS 100, neck height 200 mm, class D 400
Asymmetrical SW 14 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

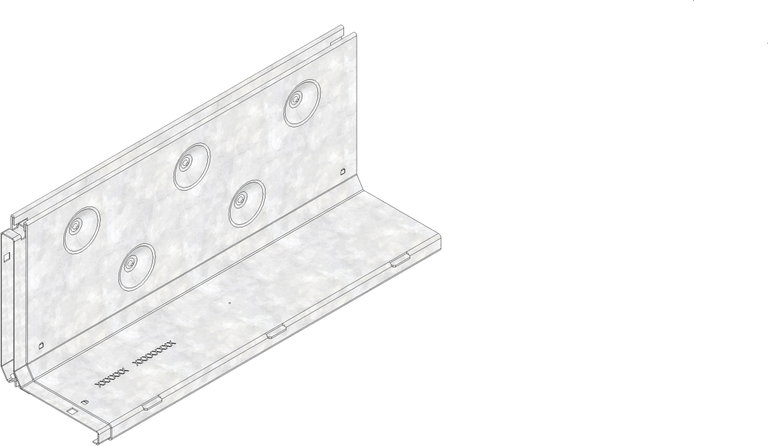

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32281
Length
500 mm
Width
156 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
5.47 kg
Material
strip galvanized steel
Intake cross-section
140.0 cm²/m
Nominal size
100
Inlet opening
500 x 14 mm
Regulations
EN 1433
Sales text
Slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, with integrated, full-surface connection element, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0,5 m
Product description
FASERFIX/RECYFIX STANDARD 100/RECYFIX PRO 100 -Slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - D 400, length 500 mm, item no. 32281
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
