Article No. 32252
SLOTTED COVERS 100, neck height 200 mm, class D 400
Asymmetrical SW 14 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

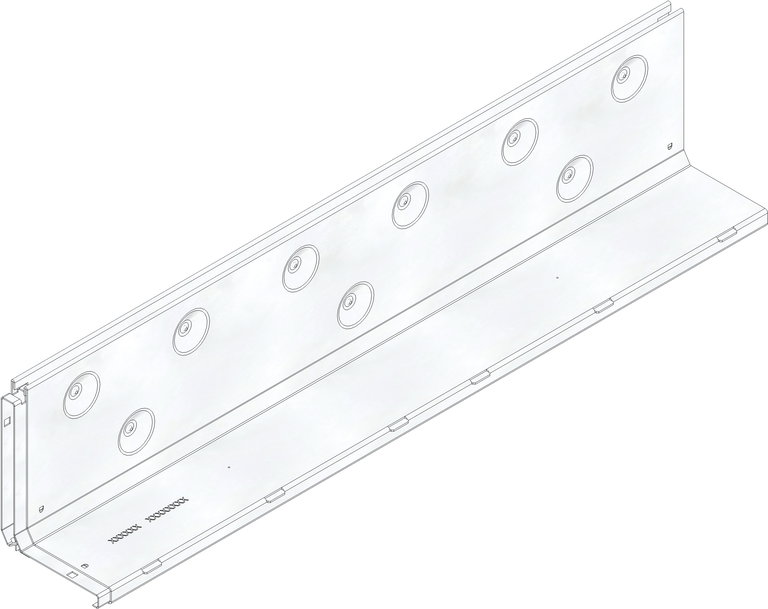

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32252
Length
1000 mm
Width
156 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
10.98 kg
Material
Stainless steel 1.4301
Intake cross-section
140.0 cm²/m
Nominal size
100
Inlet opening
1000 x 14 mm
Regulations
EN 1433
Sales text
Slotted cover SW 14 mm, neck height 200 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover slot width 14 mm, neck height 200 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - D 400, length 1000 mm, item no. 32252
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
