Article No. 32825
SLOTTED COVERS 100, neck height 200 mm, class E 600
Acess cover asymmetrical, SW 18 mm, stainless steel, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

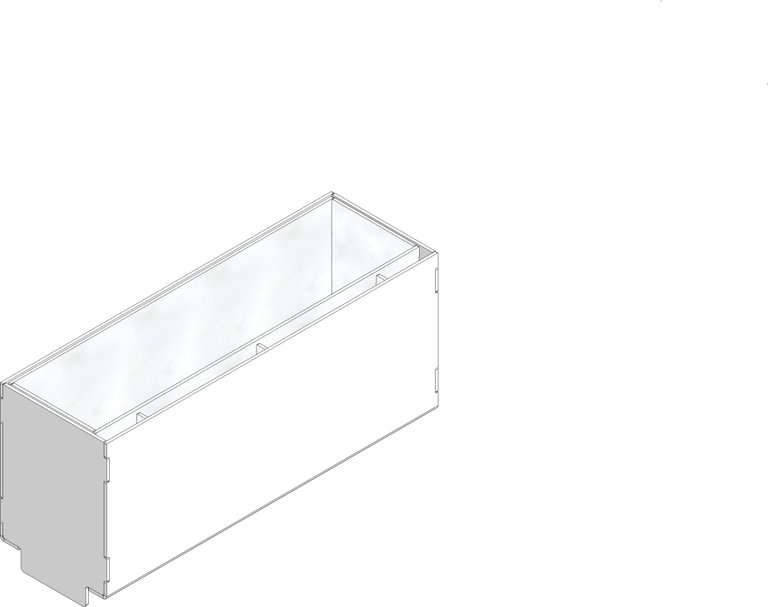

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32825
Length
500 mm
Width
160 mm
Height
229 mm
Einlegetiefe
204 mm
Weight
18.06 kg
Material
Stainless steel 1.4301
Intake cross-section
202.0 cm²/m
Nominal size
100
Inlet opening
500 x 18 mm
Fixing type
Loose blatant, Locking handle
Material grating
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access cover SW 18 mm, neck height 200 mm, stainless steel, asymmetric, cl. E 600, FASERFIX STANDARD E 100, 0,5 m
Product description
FASERFIX STANDARD E 100 - Access cover for slotted cover slot width 18 mm, neck height 200 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, loading capacity from A 15 to E 600, length 500 mm, item no. 32825
Packaging unit
42
Declaration of Performance
