Article No. 32817
SLOTTED COVERS 100, neck height 200 mm, class E 600
Asymmetrical SW 18 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

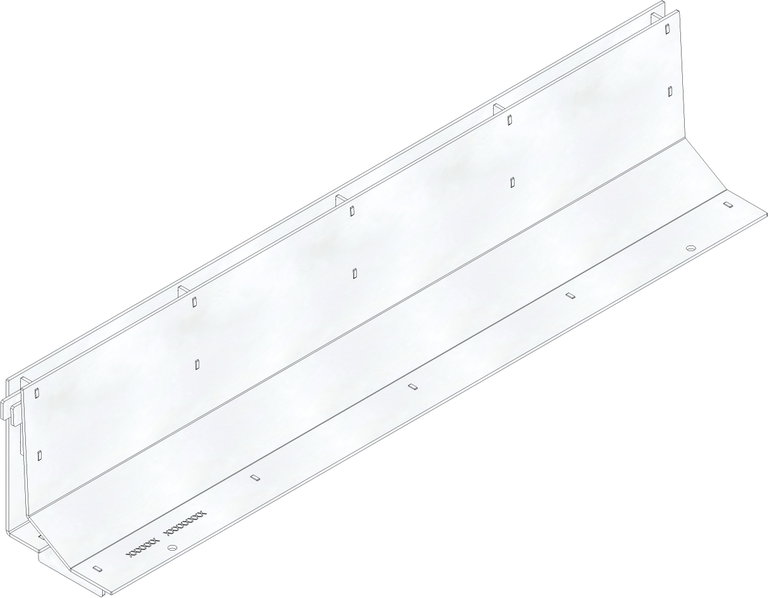

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32817
Length
1000 mm
Width
160 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
18.45 kg
Material
Stainless steel 1.4301
Intake cross-section
180.0 cm²/m
Nominal size
100
Inlet opening
1000 x 18 mm
Regulations
EN 1433
Sales text
Slotted cover SW 18 mm, neck height 200 mm, stainless steel, asymmetric, cl. E 600, FASERFIX STANDARD E 100, 1 m
Product description
FASERFIX STANDARD E 100 - slotted cover slot width 18 mm, neck height 200 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, loading capacity from A 15 to E 600, length 1000 mm, item no. 32817
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
