Article No. 72111
SLOTTED COVER 100 with removable center bar, neck height 160 mm, class B 125
asymmetric, duo slot SW 2 x 12,5 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

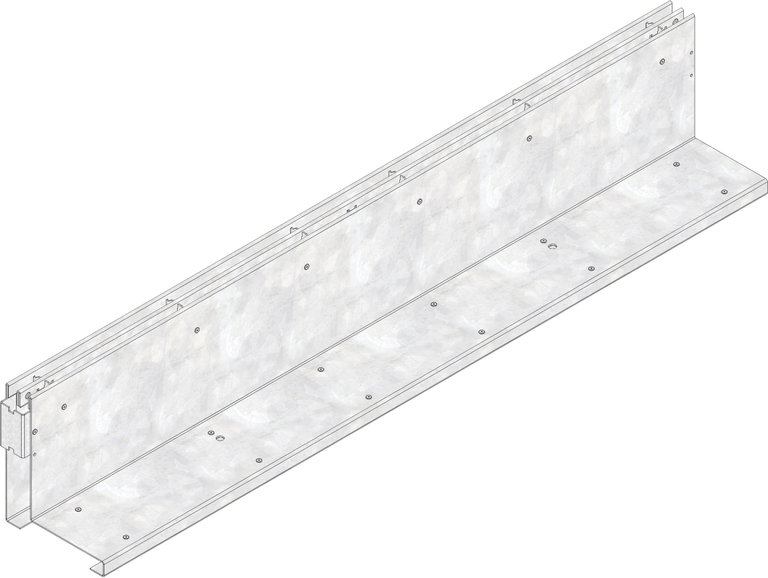

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
72111
Length
1000 mm
Width
149 mm
Height
188 mm
Einlegetiefe
180 mm
Weight
8.54 kg
Material
strip galvanized steel
Intake cross-section
250.0 cm²/m
Nominal size
100
Inlet opening
1000 x 12 mm
Fixing type
Locking handle
Material grating
strip galvanized steel
Regulations
EN 1433
Sales text
Duo slotted cover SW 2x12,5 mm, neck height 160 mm, galvanised, asymmetric, with removable centre bar, cl. B 125, RECYFIX PRO 100, 1 m
Product description
RECYFIX PRO 100 - Duo slotted cover SW 2x12,5 mm, neck height 160 mm, galvanised, asymmetric, with removable centre bar, loading capacity from A 15 up to B 125 according to EN 1433, length 1000 mm, item no. 72111
Packaging unit
-
