Article No. 32400

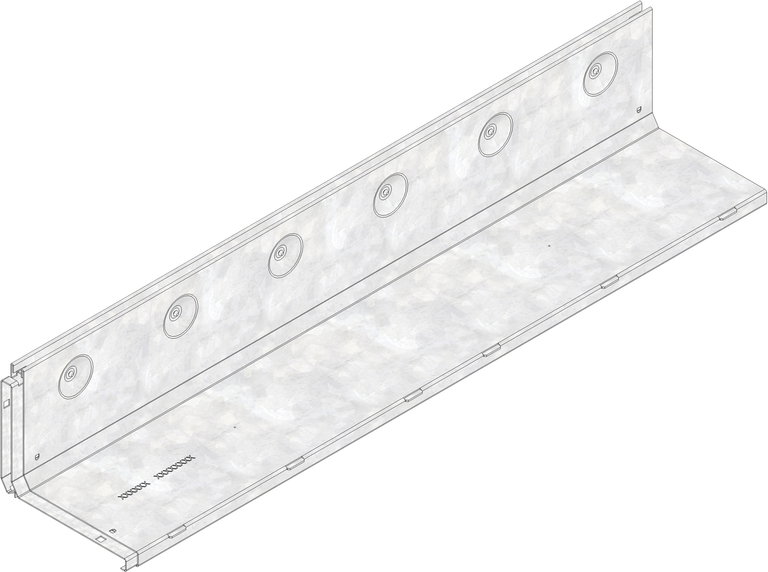

SLOTTED COVERS 150, neck height 160 mm, class C 250
Asymmetrical, SW 12 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32400
Length
1000 mm
Width
206 mm
Height
189 mm
Einlegetiefe
181 mm
Weight
8.17 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
150
Inlet opening
1000 x 12 mm
Regulations
EN 1433
Sales text
Slotted cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -slotted cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity C 250, length 1000 mm, item no. 32400
Packaging unit
48
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Concrete class E 600,
Installation instructions
