Article No. 32405

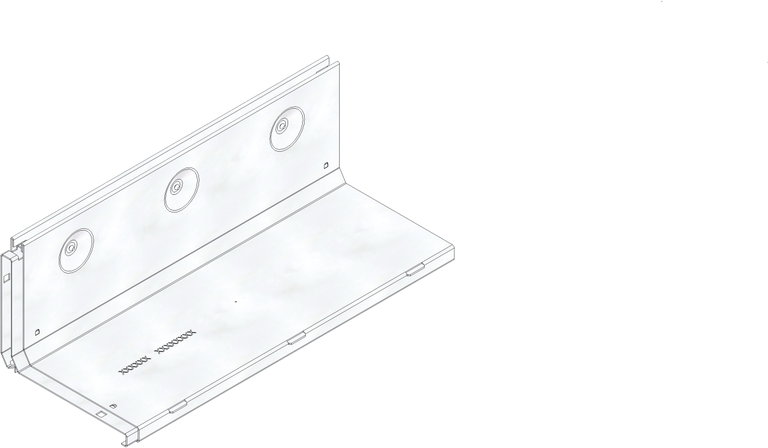

SLOTTED COVERS 150, neck height 160 mm, class C 250
Asymmetrical, SW 12 mm, stainless steel, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32405
Length
500 mm
Width
206 mm
Height
189 mm
Einlegetiefe
181 mm
Weight
4.38 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
150
Inlet opening
500 x 12 mm
Regulations
EN 1433
Sales text
Slotted cover SW 12 mm, neck height 160 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 0,5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -slotted cover SW 12 mm, neck height 160 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. C 250, length 500 mm, item no. 32405
Packaging unit
96
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
