Article No. 32733
SLOTTED COVERS 150, neck height 200 mm, class D 400
Access cover asymmetrical, SW 14 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

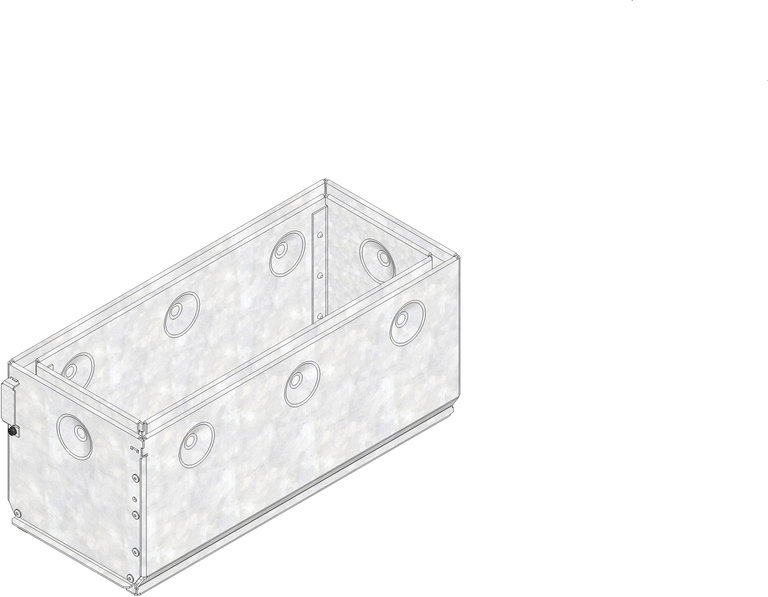

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32733
Length
500 mm
Width
213 mm
Height
222 mm
Einlegetiefe
222 mm
Weight
11.93 kg
Material
strip galvanized steel
Intake cross-section
370.0 cm²/m
Nominal size
150
Inlet opening
500 x 14 mm
Material grating
strip galvanized steel
Regulations
in accordance with EN 1433
Regulations
Access cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 0.5 m
Regulations
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -access box for slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, loading capacity from A 15 - D 400, length 500 mm, item no. 32733
Regulations
30
Declaration of Performance
