Article No. 32822

SLOTTED COVERS 150, neck height 200 mm, class E 600

Asymmetrical SW 18 mm, galvanised, 0,5 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

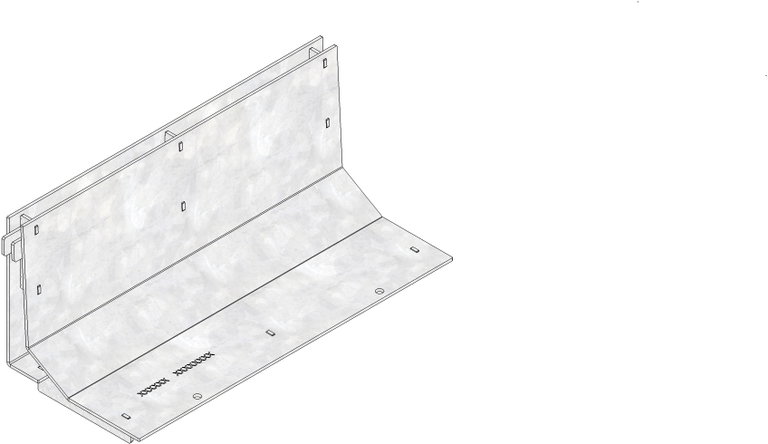

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
32822
Length
500 mm
Width
210 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
10.02 kg
Material
hot-dip galvanised steel
Intake cross-section
180.0 cm²/m
Nominal size
150
Inlet opening
500 x 18 mm
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 18 mm, neck height 200 mm, galvanised, asymmetric, cl. E 600, FASERFIX STANDARD 150, 0.5 m
Product description
FASERFIX STANDARD 150 - slotted cover slot width 18 mm, neck height 200 mm, galvanised, asymmetric, loading capacity from A 15 to E 600, length 500 mm, item no. 32822
Packaging unit
80

Declaration of Performance

Tender Texts

Installation example

Pavement class C 250,

Asphalt class D 400,

Asphalt class D 400,

Pavement class D 400,

Concrete class E 600,
