Article No. 32821
SLOTTED COVERS 150, neck height 200 mm, class E 600
Asymmetrical SW 18 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

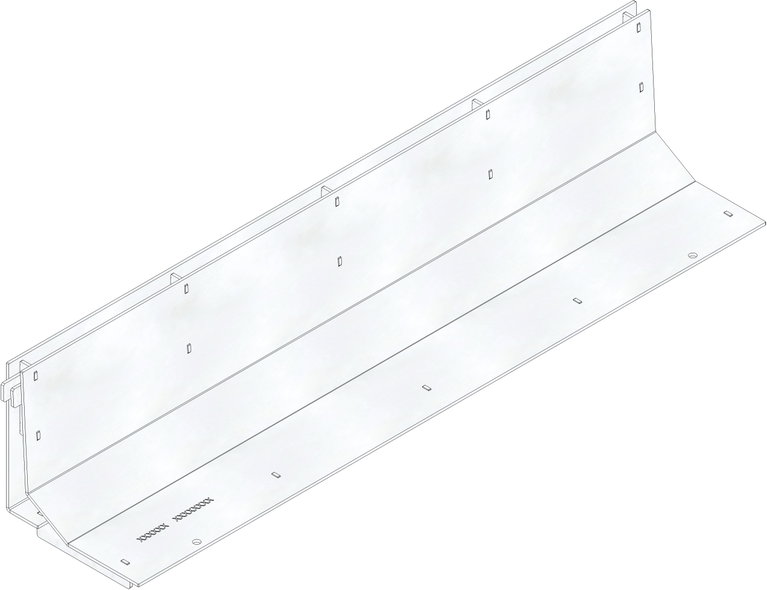

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32821
Length
1000 mm
Width
210 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
20.43 kg
Material
Stainless steel 1.4301
Intake cross-section
180.0 cm²/m
Nominal size
150
Inlet opening
1000 x 18 mm
Regulations
EN 1433
Sales text
Slotted cover SW 18 mm, neck height 200 mm, stainless steel, asymmetric, cl. E 600, FASERFIX STANDARD 150, 1 m
Product description
FASERFIX STANDARD 150 - slotted cover slot width 18 mm, neck height 200 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, loading capacity from A 15 to E 600, length 1000 mm, item no. 32821
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Concrete class E 600,
Installation instructions
