Article No. 7867

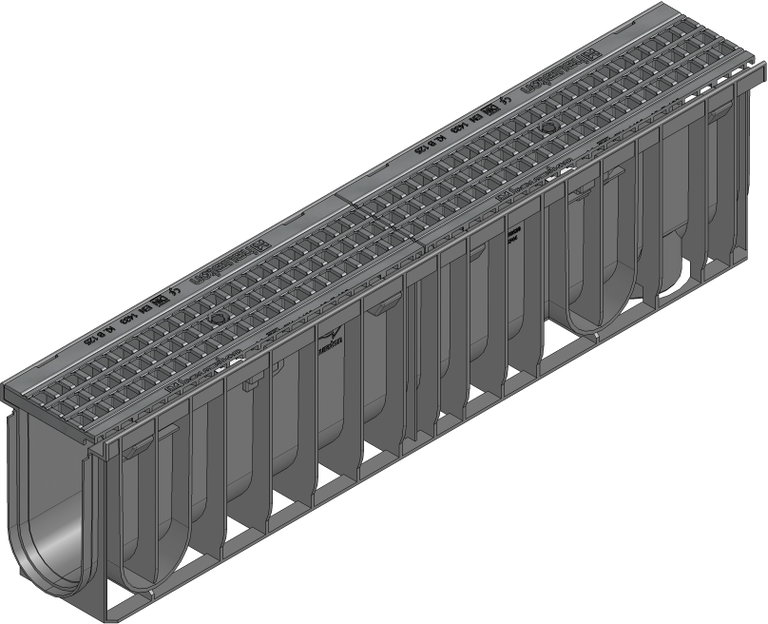

SPORTFIX ROME (I) Channels
Type 020 with GUGI-Mesh grating made of PA-GF, MW 15/25 mm, black, for securing of artificial turf, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7867
Length
1000 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
5.08 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
SPORTFIX channel Rome I type 020 with mesh grating for securing of unfilled arificial turf, 1 m
Regulations
SPORTFIX ROME I type 020 -channel body made of modified PP, with mesh grating made of PP for securing of unfilled artificial turf, L/W/H 1000x160x250 mm, item no. 7867
Regulations
28
Tender Texts
Installation example
running track / artificial turf class A 15
