Article No. 7800
SPORTFIX channels with track boundaries
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

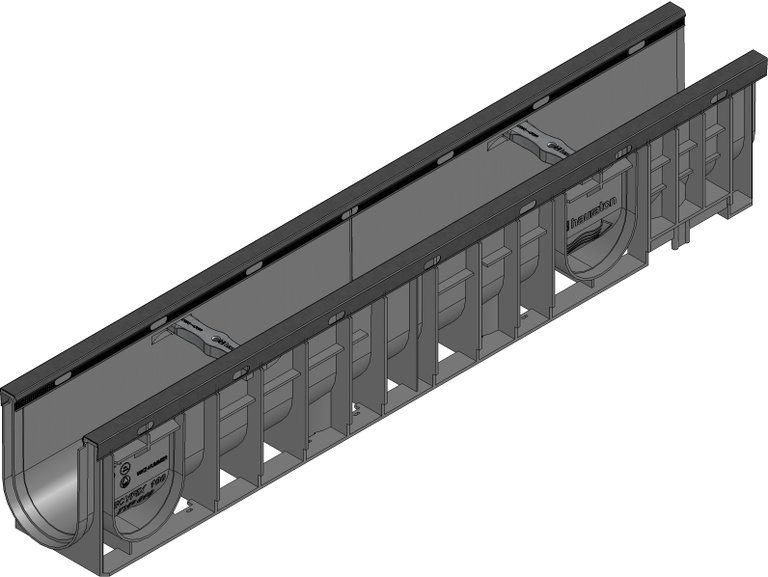

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
7800
Length
1000 mm
Width
146 mm
Height
182 mm
Weight
3.10 kg
Material
KTL coated steel, recycled, modified Polypropylene
Height of angle housing
-
Nominal size
100
Internal channel cross-section
142 cm²
Fall
-
Regulations
M
Channel material
recycled, modified Polypropylene
angle housing material
KTL coated steel
Regulations
EN 1433 + IAKS
Regulations
SPORTFIX Channel body type 010 with edge frame made of KTL-coated steel, 1 m
Regulations
SPORTFIX Type 010 - Channel made of modified PP, black, with integrated steel angle housing, KTL-coated, black, for easy installation of running track surface, L/W/H 1000x146x153 mm, Item No. 7800
Regulations
70
Tender Texts
Installation example
running track / playing field class A 15
running track / playing field class A 15
