Article No. 66077

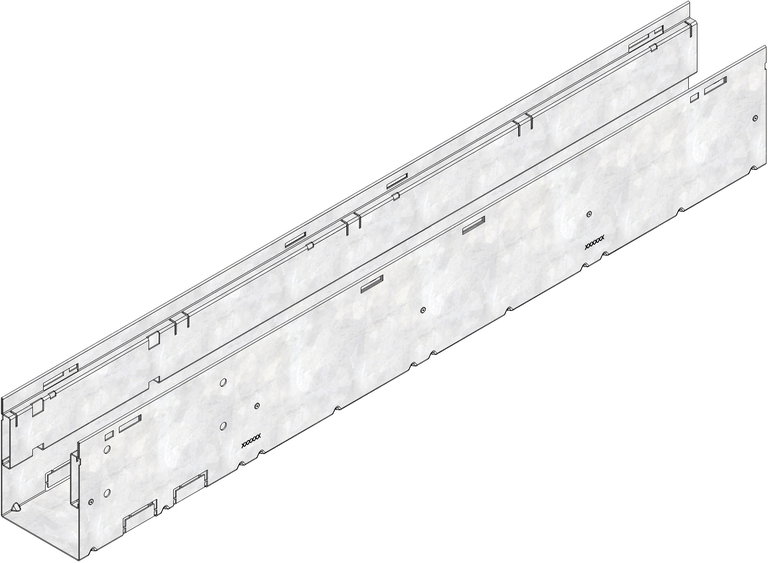

STEELFIX REGULAR 115, height 150 mm

Type 150, drain element, galvanised, 1,0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66077
Length
1000 mm
Width
115 mm
Height
150 mm
Weight
6.00 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
128 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
STEELFIX REGULAR 115 Channel body type 150 -drain element, galvanised, installation height 150 mm, 1 m
Product description
STEELFIX REGULAR 115 - channel type 150 drainage element, made of corrosion-resistant galvanised steel, suitable for pedestrian traffic and wheelchair-accessible, grating support tilted inwards, channel bottom and wall closed, but with punch-out perforations in the base for on-site pipe outlet connection DN/OD 75 and with connection possibility of STEELFIX REGULAR drainage box, L/W/H 1000x115x150 mm, item no. 66077
