Article No. 69027
STEELFIX REGULAR 155
Slotted grating SW 80/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

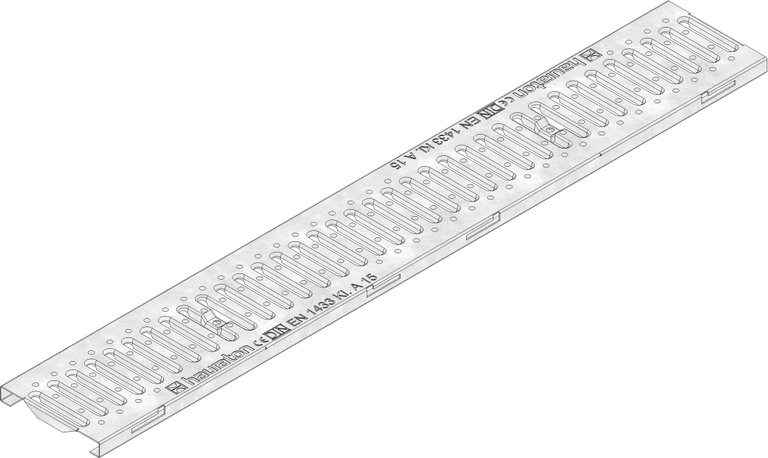

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69027
Length
1000 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
2.75 kg
Material
strip galvanized steel
Intake cross-section
278.0 cm²/m
Nominal size
155
Inlet opening
80 x 10 mm
Fixing type
Locking handle
Material grating
strip galvanized steel
Sales text
Slotted grating SW 80/10 mm, galvanised, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 155, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -slotted grating SW 80/10 mm, galvanised, suitable for pedestrian traffic and wheelchair-accessible, length 1000 mm, item no. 69027
Packaging unit
360
