Article No. 69059
STEELFIX REGULAR 205
Longitudinal grating, bar distance 12 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

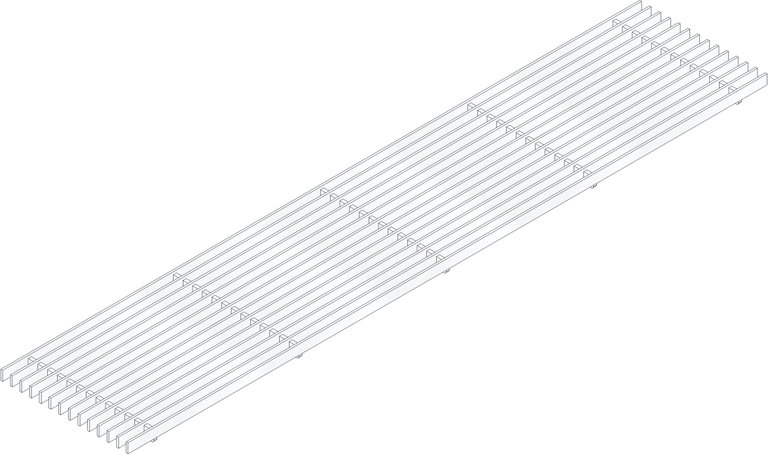

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69059
Length
1000 mm
Width
199 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
5.51 kg
Material
Stainless steel 1.4301
Intake cross-section
1528.0 cm²/m
Nominal size
205
Inlet opening
12 x 0 mm
Fixing type
Locking handle
Material grating
Stainless steel 1.4301
Sales text
Longitudinal grating bar distance 12 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 205, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -longitudinal grating, bar distance 12 mm, stainless steel CNS 1.4301 (AISI 304), cl. A 15, installation length 1000 mm, item no. 69059
Packaging unit
-
