Article No. 69013
STEELFIX REGULAR 205
Mesh grating MS 30/10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

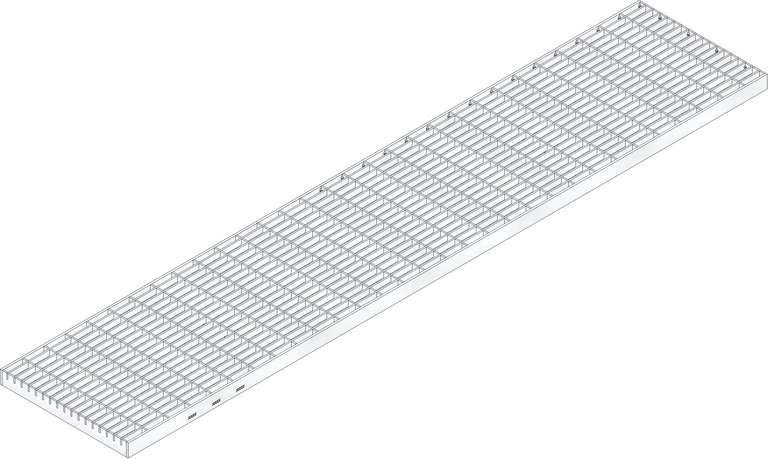

Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
69013
Length
1000 mm
Width
200 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
4.62 kg
Material
Stainless steel 1.4301
Intake cross-section
1490.0 cm²/m
Nominal size
205
Inlet opening
30 x 10 mm
Fixing type
Locking handle
Material grating
Stainless steel 1.4301
Sales text
Mesh grating MS 30/10 mm, stainless steel, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 205, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -mesh grating MW 30/10 mm, stainless steel CNS 1.4301 (AISI 304), cl. A 15, 1-fold screwable, length 500 mm, item no. 69013
Packaging unit
360
