Article No. 44335

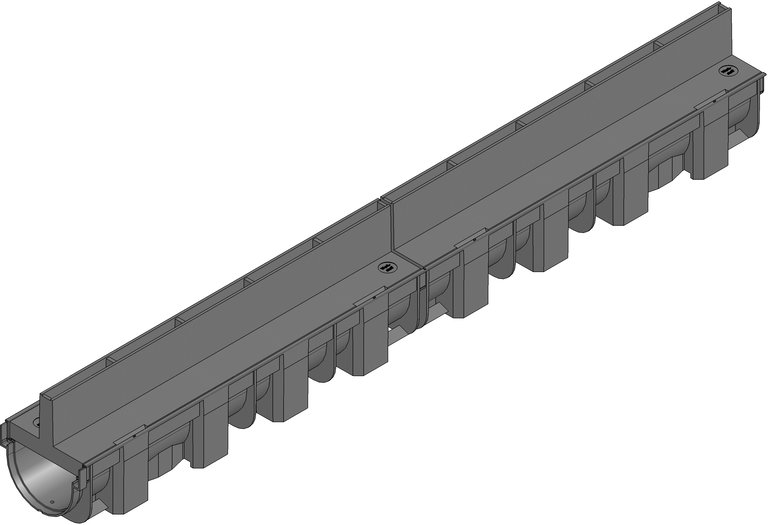

TOP X, Combined article, composite channel with grating, class A 15
black, with slotted cover SW 12,5 mm, made of PP, black, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
44335
Length
1000 mm
Width
119 mm
Height
147 mm
Weight
1.55 kg
Material
recycled, modified Polypropylene
Intake cross-section
118.0 cm²/m
Nominal size
90
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Sales text
TOP X Channel, black, with slotted cover SW 12,5 mm made of composite, black, cl. A 15, 1 m
Product description
TOP X channel made of PP, black, with two slotted cover made of PP, black, slot width 12,5 mm, slot height 58 mm, cl. A 15, L/W/H 1000x119x89/147 mm, item no. 44335
Packaging unit
90
Declaration of Performance
Tender Texts
Installation guide
Installation guide
Installation guide
Installation guide
Installation guide
Installation example
Pavement / large-size slab class A 15,
Pavement class A 15,
Pavement class A 15 - Sustains car traffic, not suitable for installation in regularly frequented areas of expressways and highways
