Article No. 44300
TOP X, Combined article, composite channel with grating, class A 15
black, with slotted grating SW 80/9 mm, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

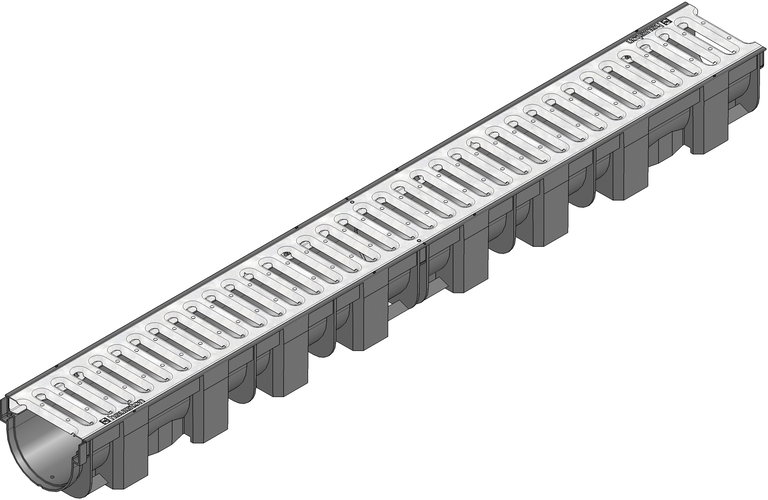

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
44300
Length
1000 mm
Width
119 mm
Height
89 mm
Einlegetiefe
20 mm
Weight
2.03 kg
Material
recycled, modified Polypropylene, strip galvanized steel
Intake cross-section
256.0 cm²/m
Nominal size
90
Internal channel cross-section
45 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433
Regulations
TOP X Channel, black, with slotted grating SW 80/9 mm, galvanised, cl. A 15, 1 m
Regulations
TOP X channel made of modified PP, black, with vertical connection possibility DN/OD 70, with slotted grating slot width 80/9, galvanised, load class A 15 according to EN 1433, L/W/H 1000x119x89 mm, item no. 44300
Regulations
90
Declaration of Performance
Tender Texts
Installation guide
Installation guide
Installation guide
Installation guide
Installation guide
Installation example
Pavement / large-size slab class A 15
Pavement class A 15
Pavement class A 15 - Sustains car traffic
