Article No. 44325
TOP X, Combined article, composite channel with grating, class A 15
silver, with mesh grating MW 8/21 mm, made of PP, silver, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

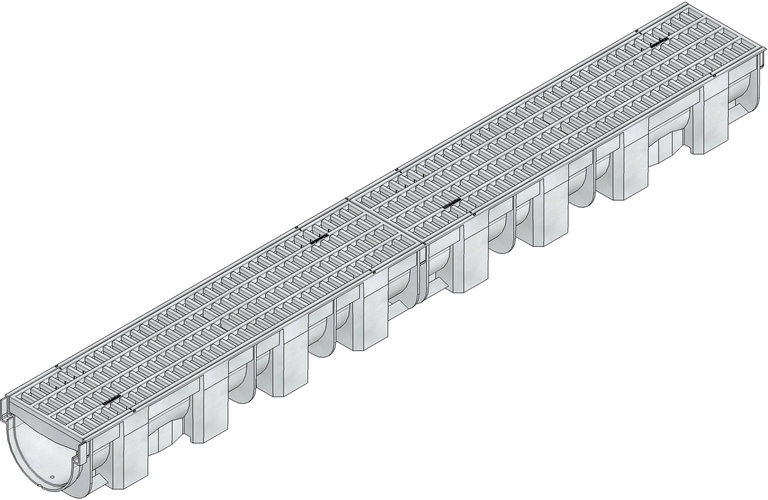

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
44325
Length
1000 mm
Width
119 mm
Height
89 mm
Einlegetiefe
20 mm
Weight
1.62 kg
Material
modified Polypropylene silver, recycled, modified Polypropylene
Intake cross-section
509.0 cm²/m
Nominal size
90
Internal channel cross-section
45 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
modified Polypropylene silver
Regulations
EN 1433
Sales text
TOP X Channel with mesh grating made of PP, silver, 1 m
Product description
TOP X channel made of PP, silver, with Mesh grating MW 8/21 made of plastic, cl. A 15, L/W/H 1000x119x89 mm, item no. 44325
Packaging unit
90
Declaration of Performance
Tender Texts
Installation guide
Installation guide
Installation guide
Installation guide
Installation guide
Installation example
Pavement / large-size slab class A 15
Pavement class A 15 - Sustains car traffic
