Article No. 7700
Trash boxes
for NW 100, with GUGI-mesh grating MW 15/25, made of PA, black, cl. B 125, locked, with particle catching bucket, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

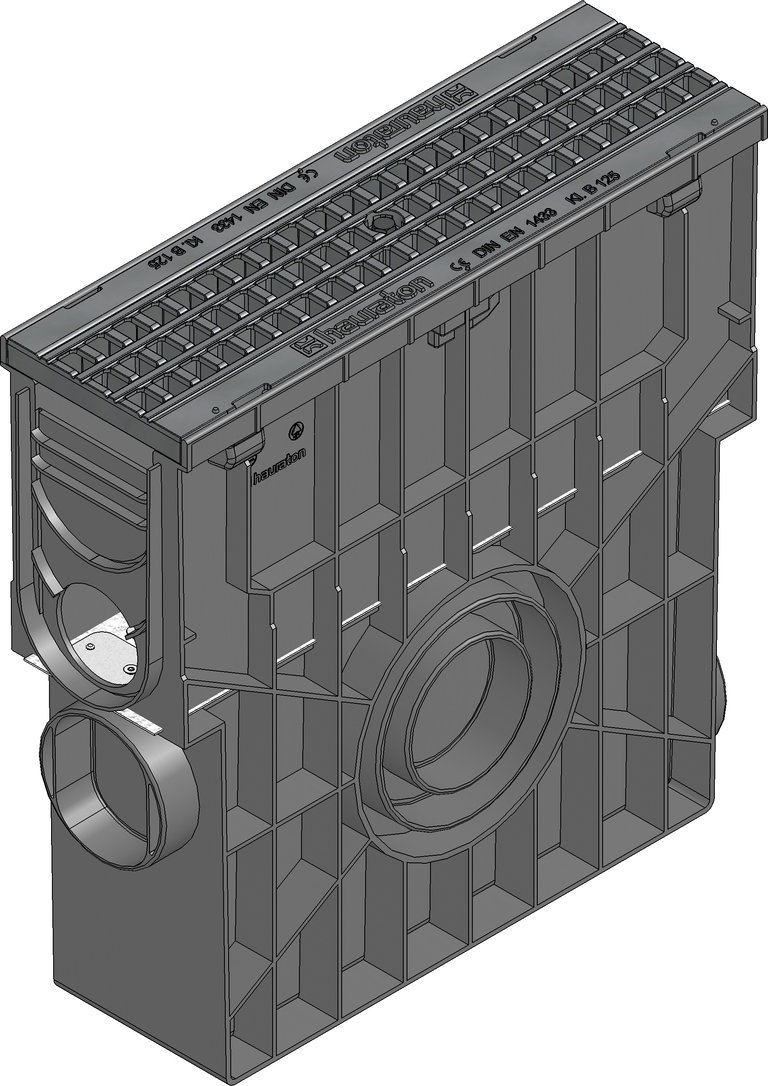

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
7700
Einlegetiefe
20 mm
Weight
5.28 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
Trash box with GUGI grating MW 15/25, black, made of PP, cl. B 125, locked, with particle catching bucket, SPORTFIX CLEAN 100, 0,5 m
Product description
SPORTFIX CLEAN 100 - Trash box, made of modified PP, according to EN 1433, with integrated angle housing, with optional connection on four sides (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable filter bucket for coarse particles, suitable for both-sided connection of channels type SPORTFIX CLEAN 100, with GUGI-composite-mesh grating, mesh width 15/25 mm, black, made of reinforced polyamide, loading capacity from A 15 - B 125, L/W/H 500x160x504 mm, item no. 7700
Packaging unit
28
