Article No. 48055
Trash boxes
for NW 100, with silt bucket made of composite, with slotted grating SW 75/9 mm, galvanised, trafficable, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
48055
Einlegetiefe
3 mm
Weight
5.20 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with slotted grating SW 75x9 mm, galvanised, trafficable, locked, with silt bucket made of composite RECYFIX STANDARD 100 , 0.5 m
Product description

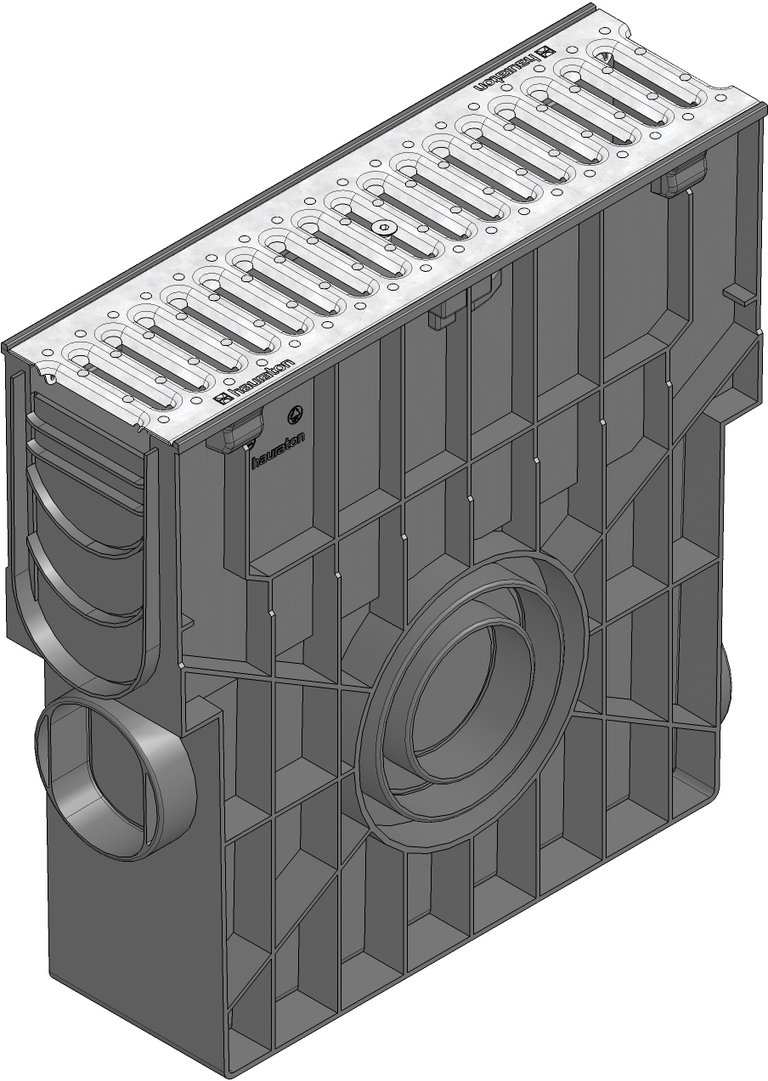

RECYFIX STANDARD 100 - Trash box made of modified PP, according to EN 1433, four-sided preformed pipe connection element (DN/OD 110 on the front side, DN/OD 110/160 on both sides), with removable silt bucket made of composite, suitable for both-sided connection of channels type RECYFIX STANDARD 100, with slotted grating, slot width 75/9 mm, galvanised, trafficable, with locking device, L/W/H 500x150x488 mm, item no. 48055
Packaging unit
28
