Article No. 47054
Trash boxes
for NW 100, with silt bucket and FIBRETEC design slotted grating SW 110/9 mm, in the colour Black, class C 250, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

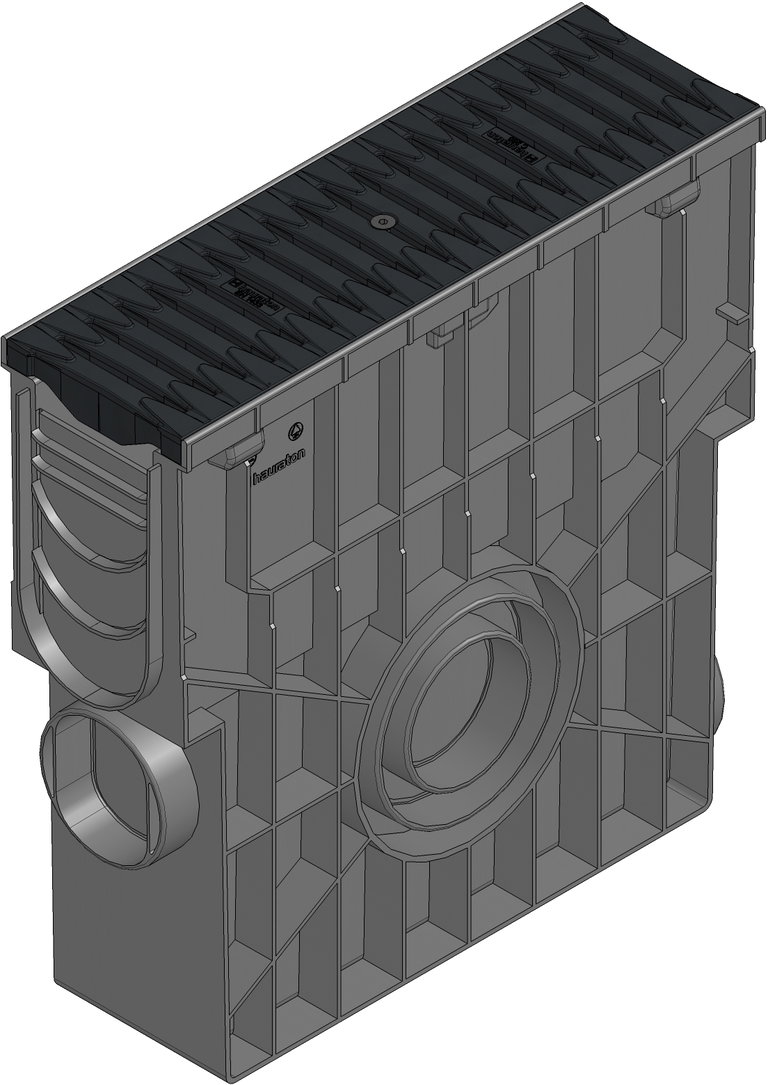

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
47054
Einlegetiefe
20 mm
Weight
5.89 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
Trash box with FIBRETEC design slotted grating SW 9 mm, black, cl. C 250, locked, silt bucket made of composite, RECYFIX PRO 100, 0,5 m
Product description
RECYFIX PRO 100 - Trash box made of modified PP, according to EN 1433, with integrated angle housing, optional connection on four sides (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of composite, suitable for both-sided connection of channels type RECYFIX PRO 100, with FIBRETEC design slotted grating, slot width 9 mm, black, with horizontal thrust resistance and locking, loading capacity A 15 - C 250 according to EN 1433, L/W/H 500x160x504 mm, item no. 47054
Packaging unit
28
