Article No. 33210
Trash boxes
for NW 150, for type 110F / 150F / 200F and type 01 - 010, lateral with integrated KG socket DN/OD 160, with galvanised steel angle housing and silt bucket made of composite, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33210
Length
500 mm
Width
210 mm
Height
603 mm
Weight
66.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
150
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U socket DN/OD 160, with silt bucket made of composite and two end caps made of composite, for channels type 110F/150F/200F as well as for type 01 - 010, FASERFIX KS 150, 0.5
Product description

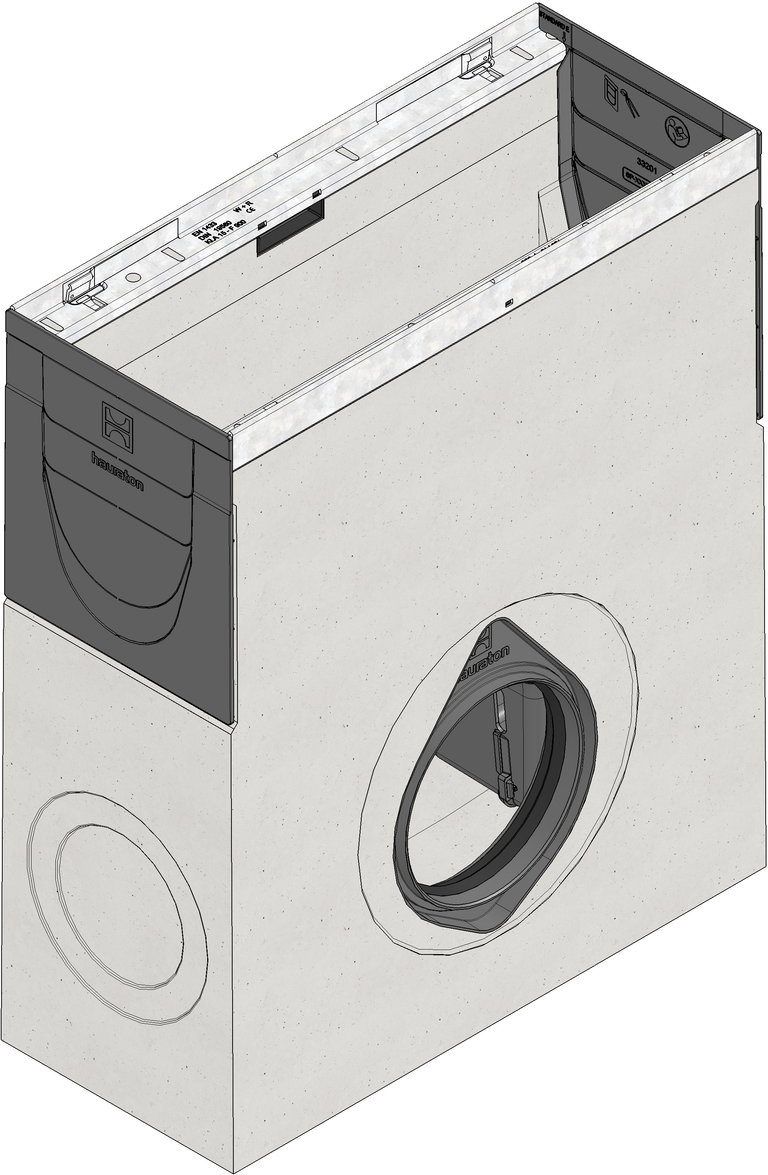

FASERFIX KS 150 type 010 - Trash box made of fibre reinforced concrete, loading capacity from A 15 - F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and with boltless quick-locking system SIDE-LOCK, fourfold locking, frontal on both sides connection possibility DN/OD 110 and DN/OD 160 as well as lateral integrated PVC-U socket DN/OD 160, with silt bucket made of composite and two plastic end caps, suitable for both-sided connection of channels type 110F/150F/200F as well as 01 - 010, easy to assemble on site, L/W/H 500x210x603 mm, item no. 33210
Packaging unit
6
