Article No. 23052
Trash boxes
for NW 200, with edge frames made of galvanised steel and silt bucket made of galvanised steel, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
23052
Length
500 mm
Width
290 mm
Height
582 mm
Weight
92.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text

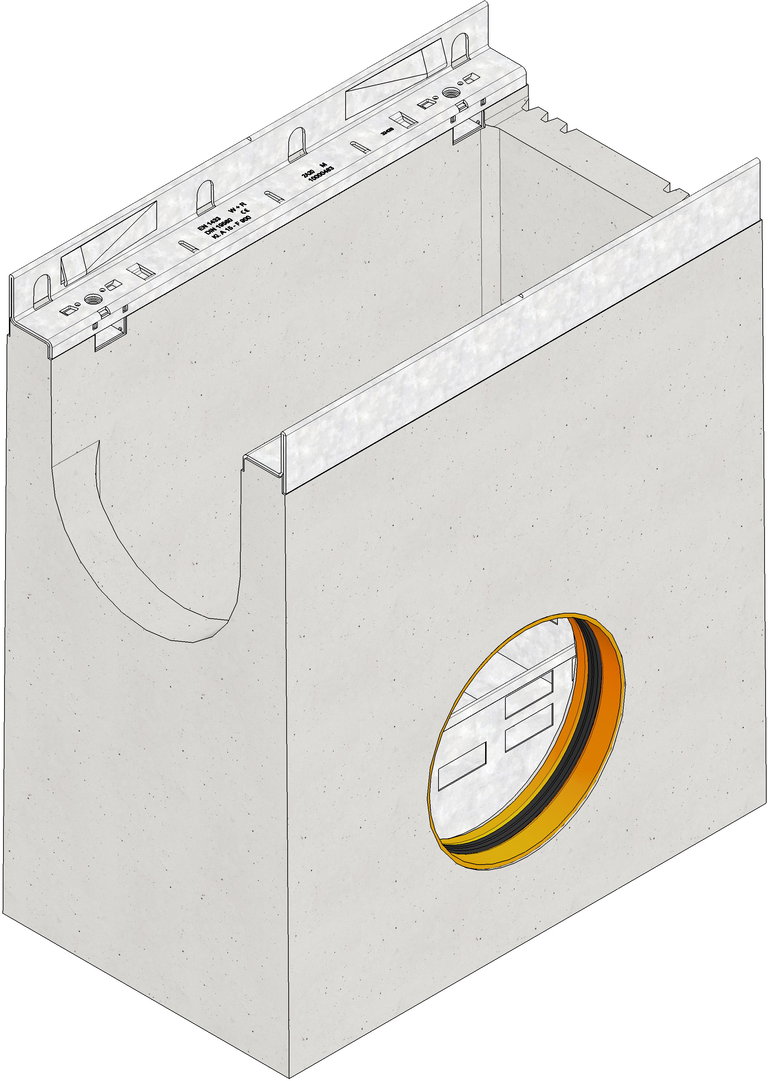

Sump unit with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - Sump unit, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK, 4-fold locking, 2-sided connection possibility (on the front side DN/OD 160, on the side with integrated PVC-U socket DN/OD 200), with removable silt bucket made of galvanised steel, suitable for both-sided connection of channel types FASERFIX SUPER 200, LxWxH 500x290x582 mm, item no. 23052
Packaging unit
4
