Article No. 24050
Trash boxes
for NW 300, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, 0,51 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

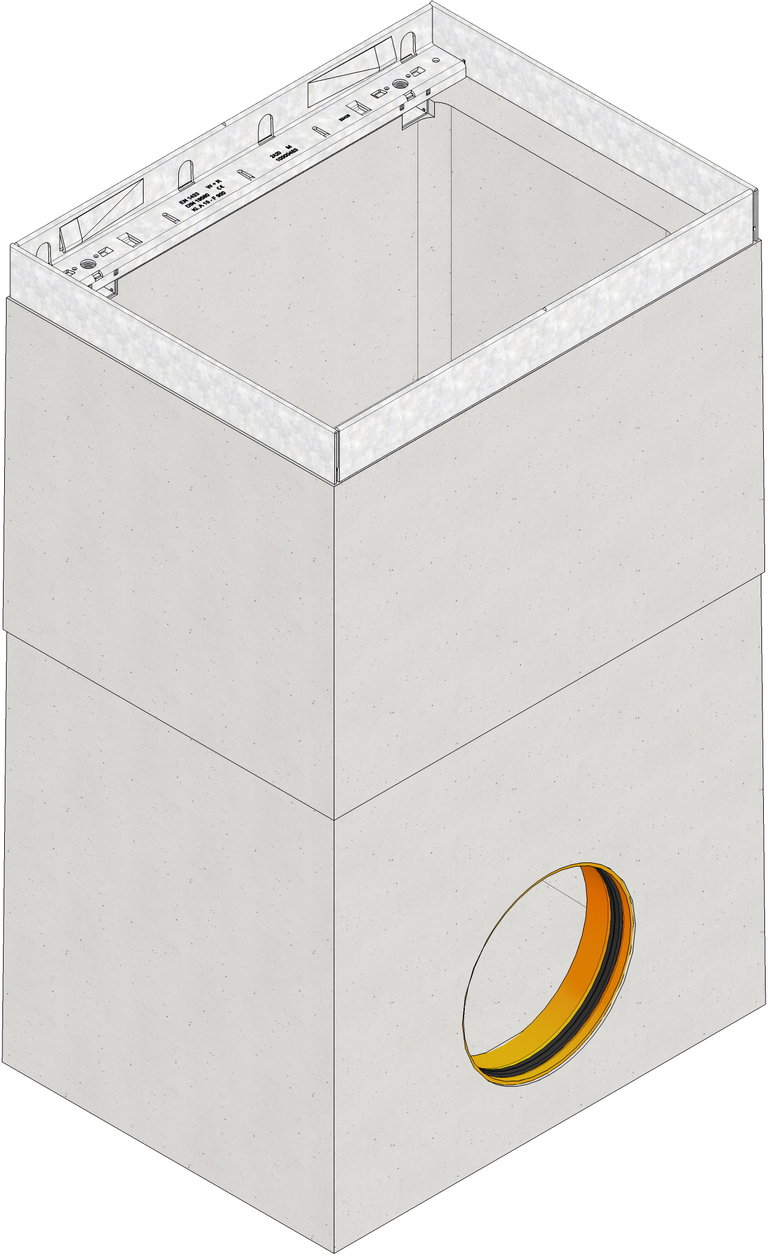

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24050
Length
510 mm
Width
390 mm
Height
850 mm
Weight
183.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX SUPER 300, 0.51 m
Product description
FASERFIX SUPER - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX SUPER 100 - 300, LxWxH 510x390x850 mm, item no. 24050
Packaging unit
6
