AQUAFIX Grease separator made of concrete – Series H
Concrete sub-separators for organic grease.
Your benefits with AQUAFIX grease separators

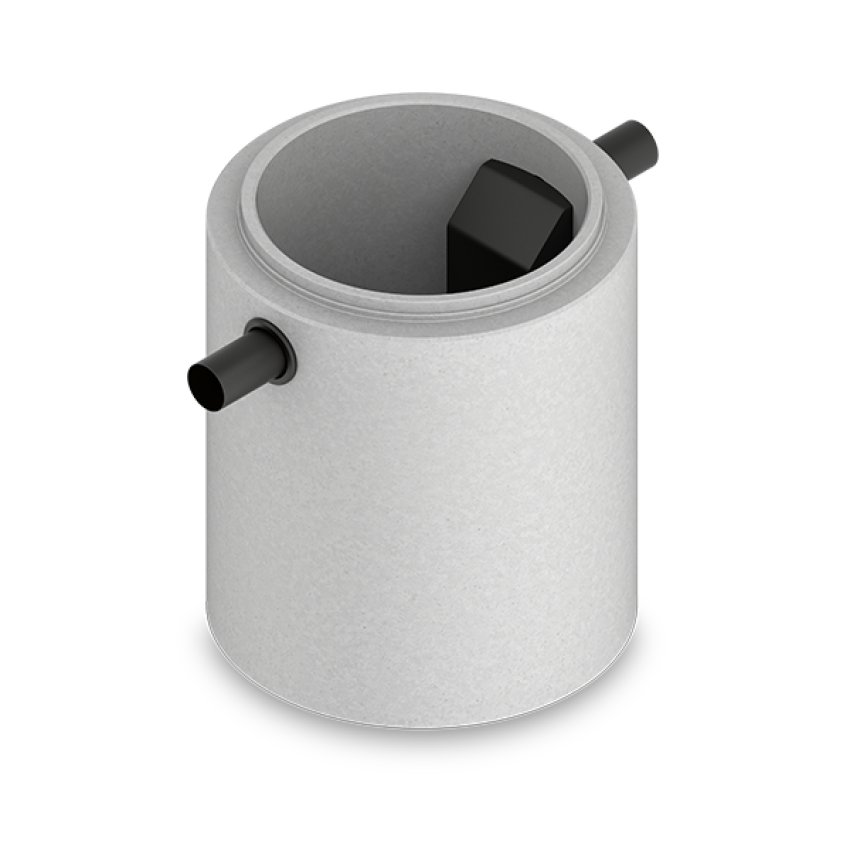

Reinforced concrete settling tanks and separators are cylindrical in shape. The tank is made of C35/45 grade concrete with a monolithic construction that ensures the airtightness of the facility, covered with a D 400 manhole cover. The concrete tanks are designed for the treatment of wastewater containing fats and oils of vegetable and animal origin as well as sludge. AQUAFIX concrete sumps and grease traps are protected inside with a special coating that protects against the aggressive action of organic fats and their degradation products.
-
Installation at greater depth possible without relief plate
-
Can be enlarged by means of an extension
-
High load class – up to D400
-
Tanks made of reinforced concrete with minimum class C35/45
-
Monolithic, reinforced concrete construction
-
Separators with integrated settling tank
The HAURATON Product Finder
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
Design of AQUAFIX concrete grease separators
Similar to light liquid separators, grease separators are always installed together with a sludge trap. Usually, the last element in the separating plant is a sampling sump. Since organic fats and oils can become very hard and rubbery, in-line sampling devices, at least those with mechanical parts, are not recommended.
Application areas of concrete grease separators
AQUAFIX concrete grease separators are designed for outdoor installation in locations such as:
– Canteens in hospitals, nursing homes, businesses, barracks, kindergartens, administrations, schools, etc.
– Mobile canteens, bars on wheels, etc.
– Public establishments, restaurants, hotels, fast food, pubs
-Snack kiosks, department stores with canteens or restaurants
– Airports, railway stations
– Ready meal manufacturers
– Canneries
– Snack factories (chocolate, jelly beans, biscuits, peanuts, …)
– Potato processing plants
– Large bakeries, test kitchens
– Slaughterhouses, carcass processing plants, rendering plants
