Article No. 65005
DACHFIX STEEL 115, height 45 mm
Type 45, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

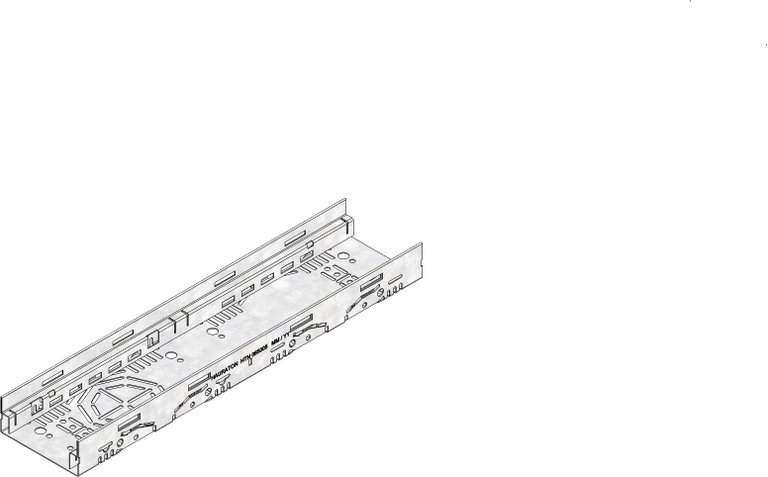

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65005
Length
500 mm
Width
115 mm
Height
45 mm
Weight
0.96 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
27 cm²
Fall
-
Sales text
Locking handle
Sales text
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 115 Channel body type 45, galvanised, installation height 45 mm, 0.5 m
Sales text
DACHFIX STEEL 115 - channel type 45, made of corrosion-resistant galvanised steel, suitable for pedestrian traffic and wheelchair-accessible, grating support tilted inwards, with two-sided perforation as well as in channel base integrated perforation for on-site performing for pipe connection element of DN/OD 75, L/W/H 500x115x45 mm, item no. 65005
Sales text
