Article No. 65028

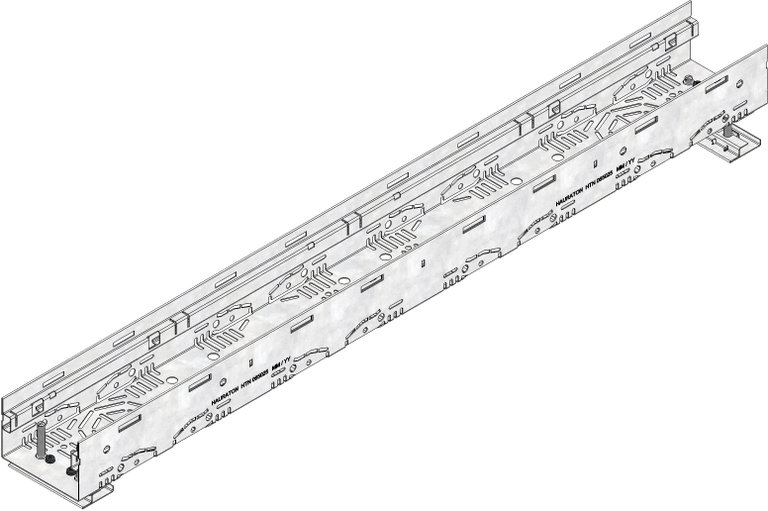

DACHFIX STEEL 115, height 75 mm

Type 75, height adjustable, galvanised, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
65028
Length
1000 mm
Width
115 mm
Height
89 mm
Weight
2.90 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
60 cm²
Fall
-
Sales text
Locking handle
Sales text
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 115 Channel body type 75, height adjustable, galvanised, height adjustment range 89-124 mm, 1 m
Sales text
DACHFIX STEEL 115 - channel type 75 with stepless height adjustment, made of corrosion-resistant galvanised steel, suitable for pedestrian traffic and wheelchair-accessible, grating support tilted inwards, with two-sided perforation as well as in channel base integrated perforation for on-site performing for pipe connection element of DN/OD 75 or DN/OD 110, incl. 2 pcs adjusting sets per 1 m-piece, adjustable in height 89-124 mm, L/W/H 1000x115x89-124 mm, item no. 65028
Sales text
100
