Article No. 65175
DACHFIX STEEL 135, height 150 mm
Type 150, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

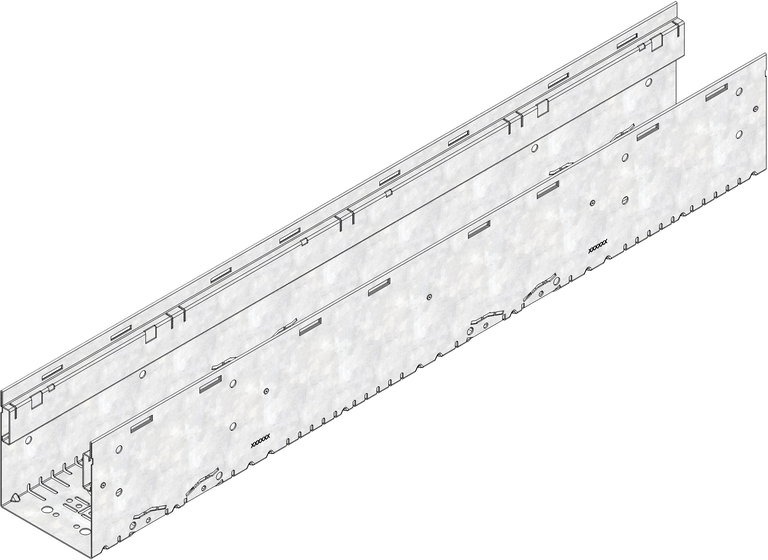

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65175
Length
1000 mm
Width
135 mm
Height
150 mm
Weight
6.10 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
169 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL Channel 135 Type 150 galvanised, height 150 mm, L 1,0 m
Product description
DACHFIX STEEL 135 - Channel type 150, made of corrosion-resistant galvanised steel, walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x135x150 mm, Item No. 65175
Packaging unit
112
