Article No. 65103

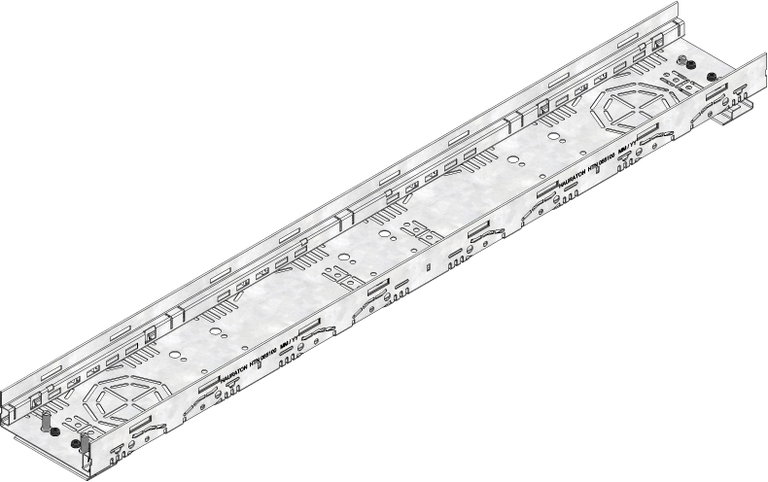

DACHFIX STEEL 135, height 45 mm
Type 45, height adjustable, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65103
Length
1000 mm
Width
135 mm
Height
59 mm
Weight
2.54 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
32 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 135 channel type 45, height adjustable, galvanised, adjustable in height 59-74 mm, 1 m
Product description
DACHFIX STEEL 135 - channel type 45 with stepless height adjustment, made of corrosion-resistant galvanised steel, suitable for pedestrian traffic and wheelchair-accessible, grating support tilted inwards, with two-sided perforation as well as in channel base integrated perforation for on-site performing for pipe connection element of DN/OD 75 or DN/OD 110, incl. 2 pcs adjusting sets per 1 m-piece, adjustable in height 59-74 mm, L/W/H 1000x135x59-74 mm, item no. 65103
