Article No. 69057
DACHFIX STEEL 135
Longitudinal grating SW 11 mm, stainless steel, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view

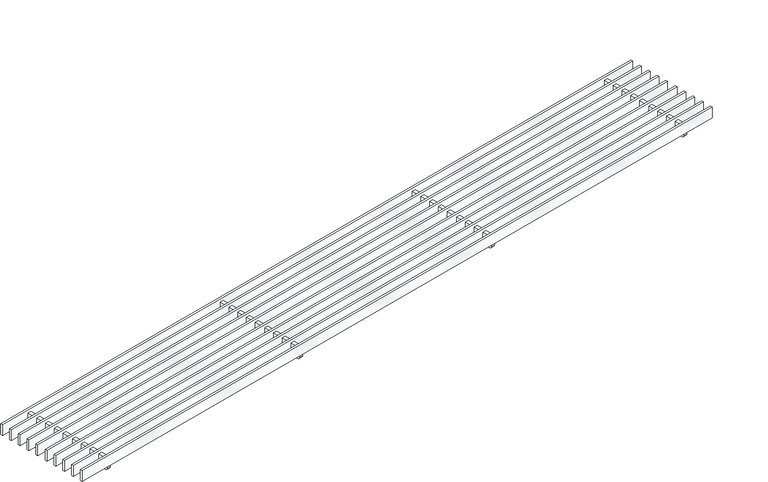

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69057
Length
1000 mm
Width
129 mm
Height
20 mm
Weight
3.80 kg
Material
Stainless steel 1.4301
Intake cross-section
958.0 cm²/m
Nominal size
135
Inlet opening
0
Material grating
Stainless steel 1.4301
Sales text
Longitudinal grating, bar distance 12 mm, stainless steel, DACHFIX STEEL/STEELFIX REGULAR 135, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -longitudinal grating, bar distance 12 mm, stainless steel CNS 1.4301 (AISI 304), loading class A 15, installation length 1000 mm, item no. 69057
Packaging unit
233
