Article No. 66172
DACHFIX STEEL 155, height 100 mm
Type 100, galvanised, 1,0 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

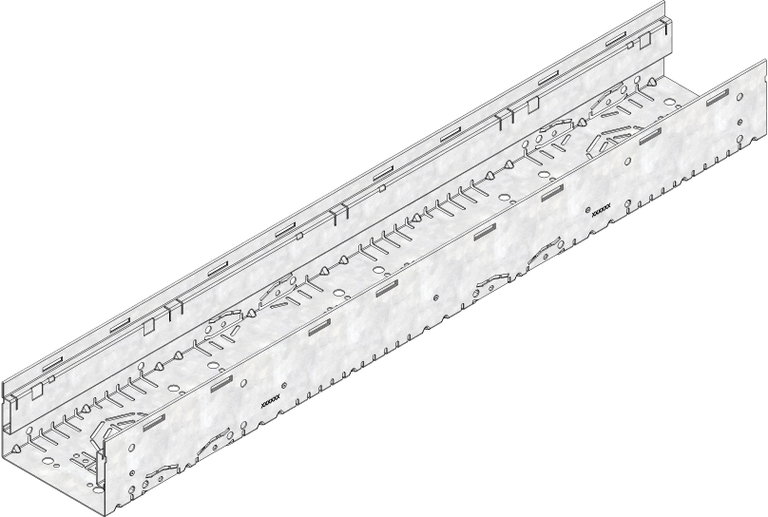

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
66172
Length
1000 mm
Width
155 mm
Height
100 mm
Weight
4.76 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
155
Internal channel cross-section
-
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 155 Channel body type 100, galvanised, installation height 100 mm, 1 m
Product description
STEELFIX REGULAR 155 - channel type 100, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, channel base and channel wall closed L/W/H 1000x155x100 mm, item no. 66172
Packaging unit
140
Tender Texts
Installation instructions
Installation example
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable, wheelchair accessible
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
