Article No. 65425
DACHFIX STEEL 255, height 75 mm
Type 75, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

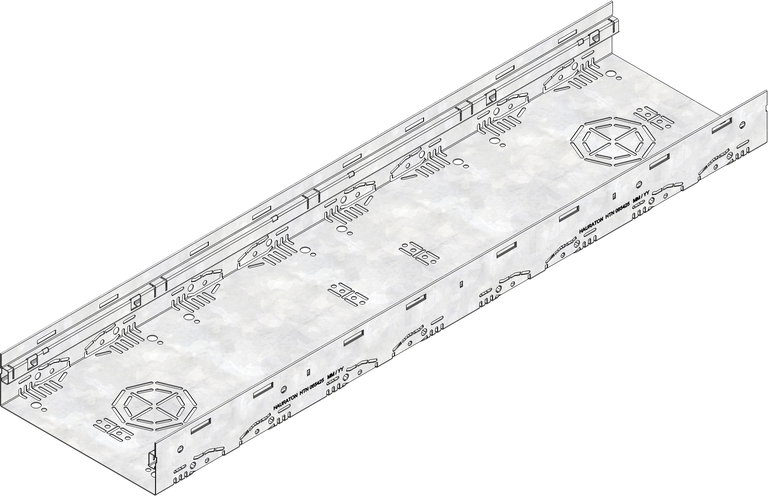

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65425
Length
1000 mm
Width
255 mm
Height
75 mm
Weight
3.74 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
255
Internal channel cross-section
137 cm²
Fall
-
Sales text
Locking handle
Sales text
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 255 Channel body type 75, galvanised, installation height 75 mm, 1 m
Sales text
DACHFIX STEEL 255 - Channel type 75, made of corrosion-resistant galvanised steel, walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x255x75 mm, Item No. 65425
Sales text
104
Tender Texts
Installation instructions
Installation example
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
Wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
Wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
