Article No. 65001

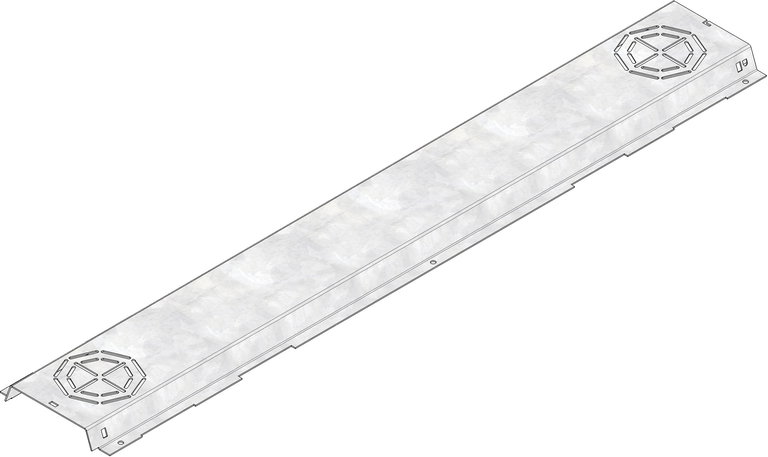

DACHFIX STEEL Cross-intersection

open, galvansied, 1,0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
65001
Length
1000 mm
Width
165 mm
Height
29 mm
Weight
2.23 kg
Material
strip galvanized steel
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection (channel), galvanised, trapezoidal conical shape/hat profile, open downwards, DACHFIX STEEL/STEELFIX REGULAR, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR -Cross-intersection, galvanised, as hat profile, open downwards, conical shape, pluggable and fixable, with DN 110 connection options as inlet, can optionally be used as a closed duct, L/W/H 1000x165x29 mm, item no. 65001
Packaging unit
198

Tender Texts

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
