DACHFIX STEEL Cross-intersection

with u-plate, galvansied, 1,0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

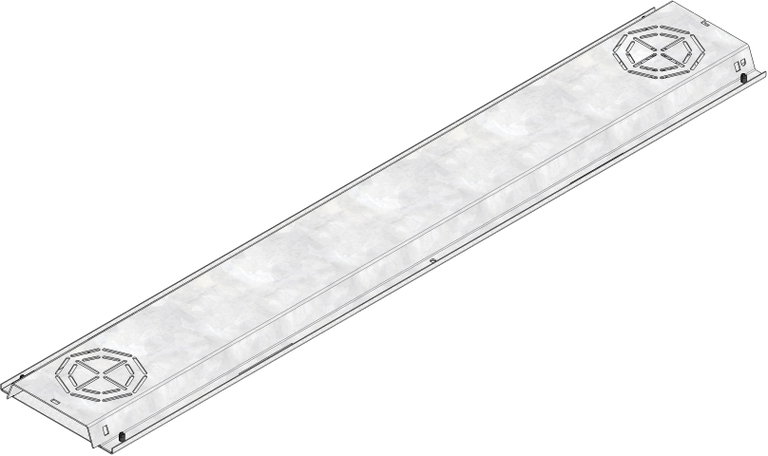

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
65022
Length
1000 mm
Width
169 mm
Height
30 mm
Weight
3.58 kg
Material
strip galvanized steel
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection (channel), galvanised, trapezoidal conical shape/hat profile, with flat trough as closed flat duct, DACHFIX STEEL/STEELFIX REGULAR, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR -cross-intersection, galvanised, as hat profile, with flat trough as closed flat duct, conical shape, pluggable and fixable, with connection possibility DN 110 as an inlet and as an outlet, L/W/H 1000x169x30 mm, item no. 65022
Packaging unit
-

Tender Texts

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair accessible, drainage without channel connection

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example
