Article No. 97348
DRAINFIX CLEAN FSU 300, class D 400
Ductile iron grating SW 2 x 136/18 mm, black, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

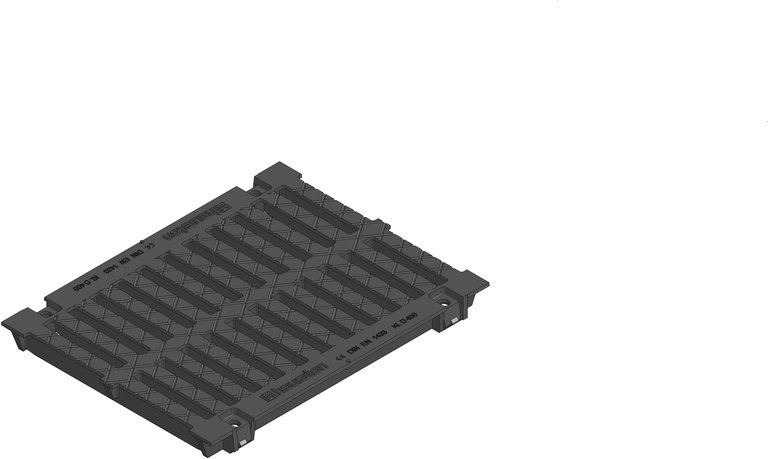

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97348
Length
500 mm
Width
379 mm
Height
52 mm
Einlegetiefe
40 mm
Weight
16.91 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1150.0 cm²/m
Nominal size
300
Inlet opening
18
Sales text
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 136/18 mm, black, cl. D 400, DRAINFIX CLEAN FSU 300, 0.5 m
Sales text
DRAINFIX CLEAN FSU 300 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 2x 136/18 mm, black, with horizontal thrust resistance, loading capacity A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 97348
Sales text
-
national declaration of performance
Nation DoP
