Article No. 97368
DRAINFIX CLEAN FSU 300, class E 600
GUGI-ductile iron mesh grating MW 15/25 mm, black, with plastic caps, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

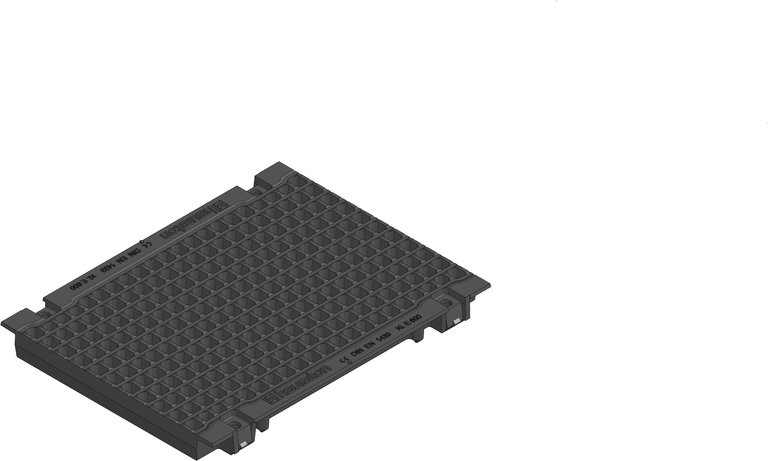

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97368
Length
500 mm
Width
379 mm
Height
47 mm
Weight
22.90 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1048.0 cm²/m
Nominal size
300
Inlet opening
25
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MW 15/25 mm, black, cl. E 600, with plastic caps, DRAINFIX CLEAN FSU 300, 0,5 m
Product description
DRAINFIX CLEAN FSU 300 - GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, MW 15/25 mm, black, with horizontal thrust resistance, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, fourfold locking, with plastic caps, installation length 500 mm, item no. 97368
Packaging unit
-
national declaration of performance
Nation DoP
