Article No. 97398
DRAINFIX CLEAN FSU 300, class F 900
Ductile iron grating SW 2 x 136/20 mm, black, with plastic caps, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

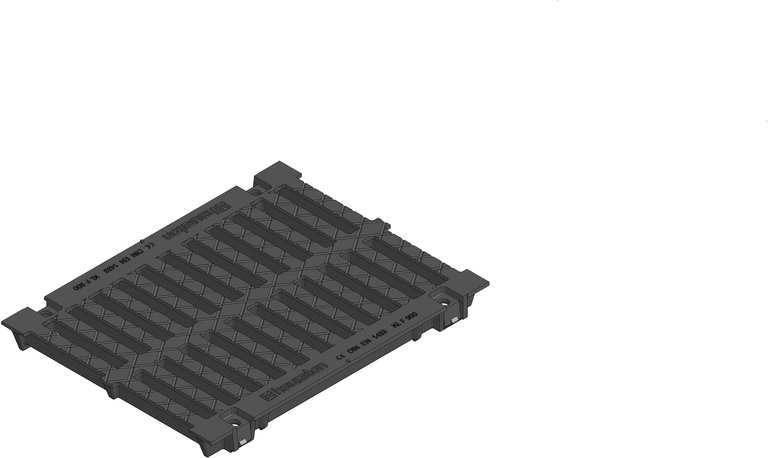

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97398
Length
500 mm
Width
379 mm
Height
64 mm
Weight
22.37 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1334.0 cm²/m
Nominal size
300
Inlet opening
20
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 2 x 136/20 mm, black, cl. F 900, with plastic caps, DRAINFIX CLEAN FSU 300, 0,5 m
Product description
DRAINFIX CLEAN FSU 300 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 2x 136/20 mm, black, with horizontal thrust resistance, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, fourfold locking, with plastic caps, installation length 500 mm, item no. 97398
Packaging unit
-
national declaration of performance
Nation DoP
