Article No. 97448
DRAINFIX CLEAN FSU 400, class D 400
Ductile iron grating SW 3 x 120/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

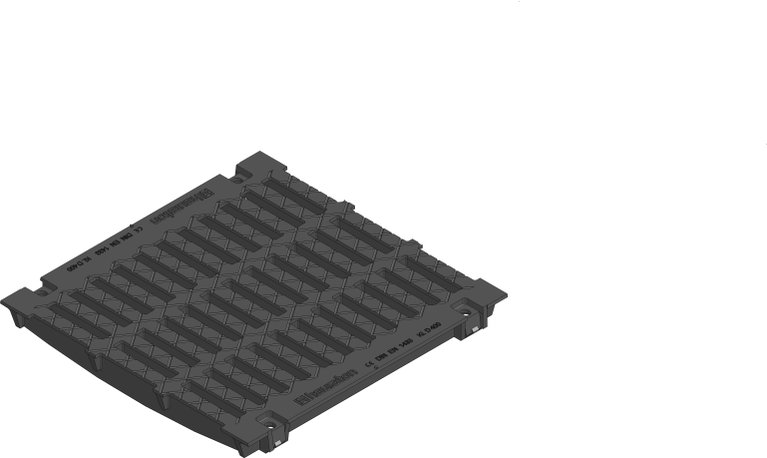

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97448
Length
500 mm
Width
479 mm
Height
58 mm
Einlegetiefe
40 mm
Weight
25.42 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1420.0 cm²/m
Nominal size
400
Inlet opening
18
Sales text
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
Ductile iron grating 3x SW 120/18 mm, black, cl. D 400, DRAINFIX CLEAN FSU 400, 0.5 m
Sales text
DRAINFIX CLEAN FSU 400 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 3x 120/18 mm, black, with horizontal thrust resistance, loading capacity A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 97448
Sales text
-
national declaration of performance
Nation DoP
