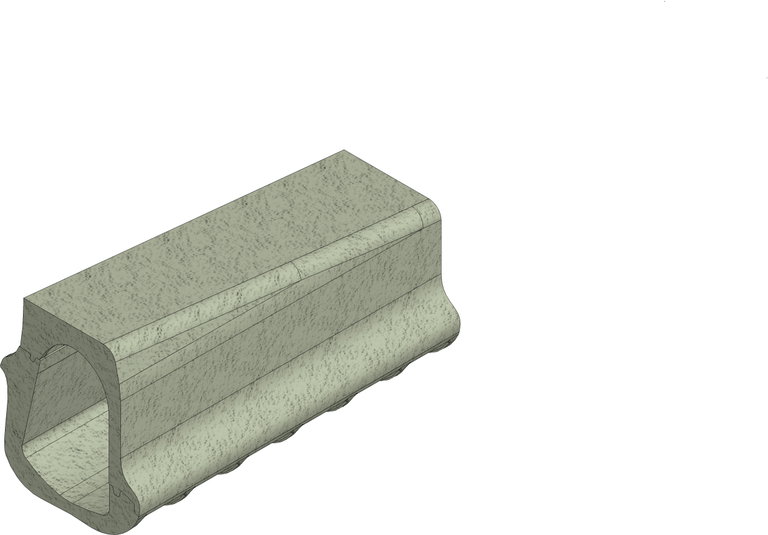

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10190
Length
500 mm
Width
215 mm
Height
205 - 255 mm
Weight
5.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
110
Internal channel cross-section
192 cm²
Fall
-
Type according to DIN EN 1433
M
Sales text
KERBFIX Left Hand Drop Kerb L255, cl. D 400, 0.5 m
Product description
KERBFIX 305 - Left Hand Drop Kerb L255 with integrated drainage, made of recycled PP, grey, according to EN 1433, loading capacity from A 15 - D 400, L/W/H 500/215/255-205 mm, item no. 10190
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
