Article No. 10191
Drop Kerbs
Right Hand Drop Kerb R305
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

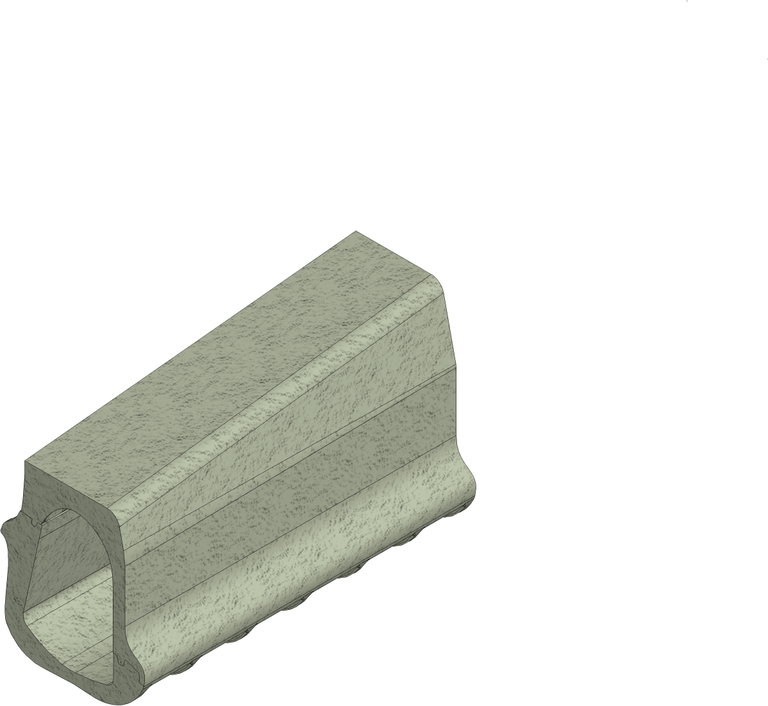

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10191
Length
500 mm
Width
215 mm
Height
255 - 305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
110
Internal channel cross-section
224 cm²
Fall
-
Sales text
M
Sales text
KERBFIX Right Hand Drop Kerb R305, cl. D 400, 0.5 m
Sales text
KERBFIX 305 - Right Hand Drop Kerb R305 with integrated drainage, made of recycled PP, grey, according to EN 1433, loading capacity from A 15 - D 400, L/W/H 500/215/305-255 mm, item no. 10191
Sales text
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
