Article No. 8152
FASERFIX KS 100, class B 125
Mesh grating MW 30/10 mm, galvanised, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

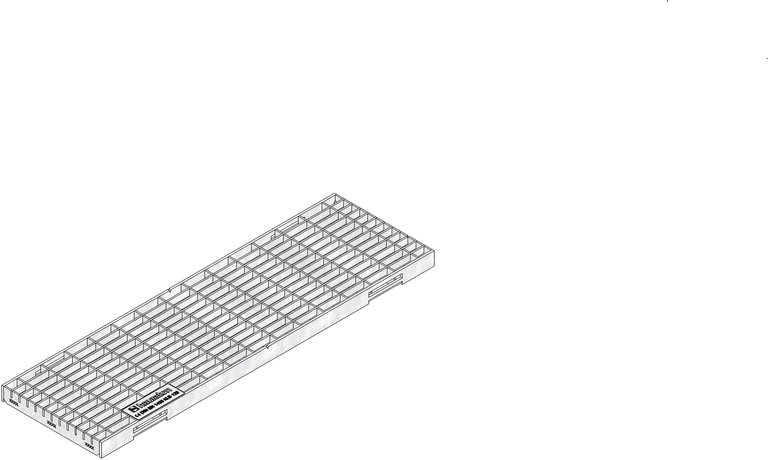

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8152
Length
500 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
2.00 kg
Material
hot-dip galvanised steel
Intake cross-section
1306.0 cm²/m
Nominal size
100
Inlet opening
10
Sales text
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Sales text
EN 1433, DIN 19580
Sales text
Mesh grating, mesh wide 30/10, galvanised, cl.B 125, KS 100, 0,5 m
Sales text
KS 100 - mesh grating mesh wide 30/10, galvanised, loading capacity A 15 - B 125 acc. DIN 19580/EN 1433, CE-conform, lenght 500mm, Item No. 8152
Sales text
200
Declaration of Performance
