Article No. 28577
FASERFIX KS 100, class C 250
Mesh grating MW 30/10 mm, stainless steel, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

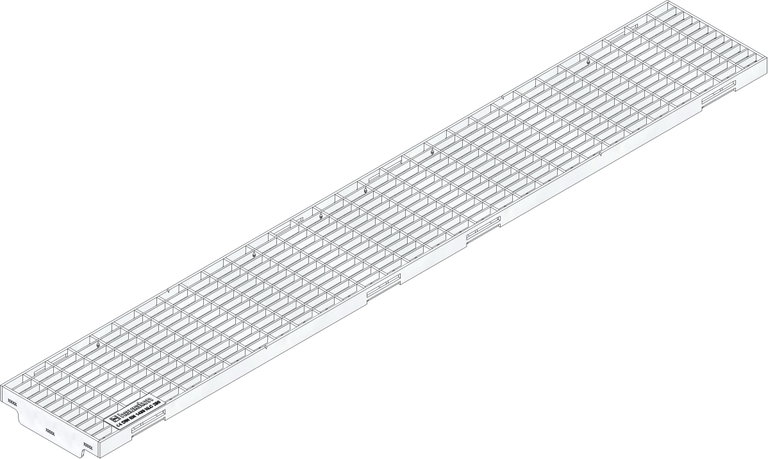

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28577
Length
1000 mm
Width
149 mm
Height
36 mm
Weight
5.20 kg
Material
Stainless steel 1.4301
Intake cross-section
1062.0 cm²/m
Nominal size
100
Inlet opening
10
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 30/10, stainless steel, class C 250, KS 100, 1 m
Product description
KS 100 - Mesh grating MW 30x10, stainless steel, loading capacity from A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, L. 1000 mm, Art.-No. 28577
Packaging unit
200
Declaration of Performance
