Article No. 28074
FASERFIX KS 100, class C 250
Mesh grating MW 30/30 mm, galvanised, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

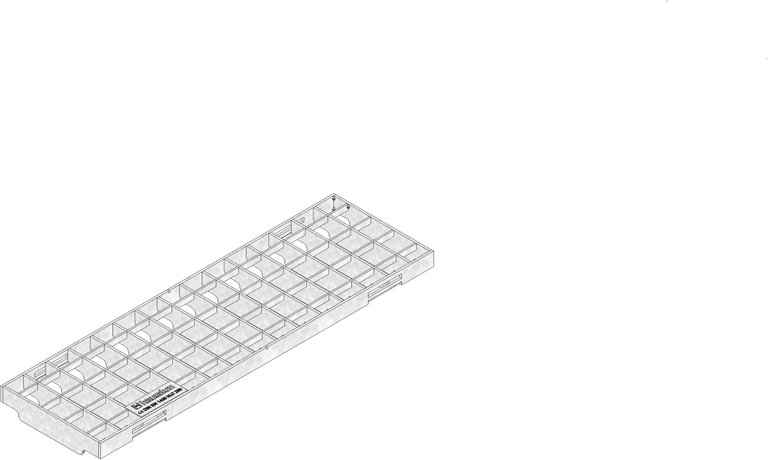

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28074
Length
500 mm
Width
149 mm
Height
31 mm
Weight
2.20 kg
Material
hot-dip galvanised steel
Intake cross-section
819.0 cm²/m
Nominal size
100
Inlet opening
30
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 30/30, KS 100, galvanised, cl. C 250, 0,5 m
Product description
KS 100 - Mesh grating, MW 30/30, galvanised, loading capacity A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length 500 mm, Art.-no. 28074
Packaging unit
400
Declaration of Performance
