Article No. 28073
FASERFIX KS 100, class C 250
Mesh grating MW 30/30 mm, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

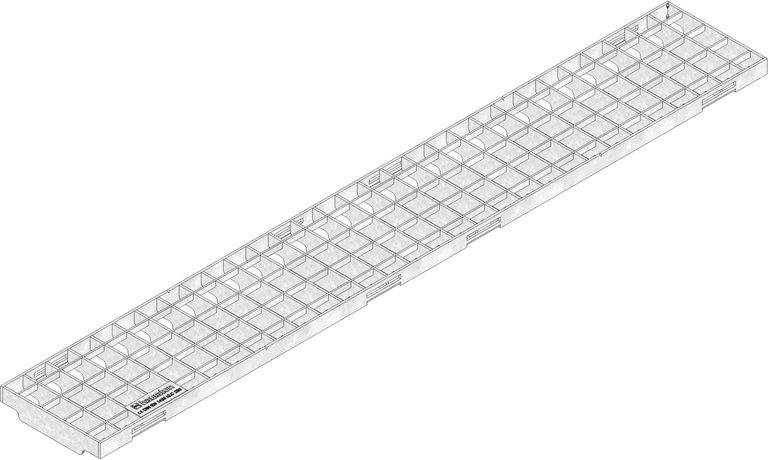

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28073
Length
1000 mm
Width
149 mm
Height
31 mm
Weight
4.40 kg
Material
hot-dip galvanised steel
Intake cross-section
828.0 cm²/m
Nominal size
100
Inlet opening
30
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 30/30, galvanised, KS 100, Kl. C 250, 1 m
Product description
KS 100 - Mesh grating, MW 30/30, galvanised, loading capacity A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length 1000 mm, Art.-no. 28073
Packaging unit
200
Declaration of Performance
