Article No. 28170
FASERFIX KS 100, class C 250
Reinforced slotted grating SW 10 mm, stainless steel, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

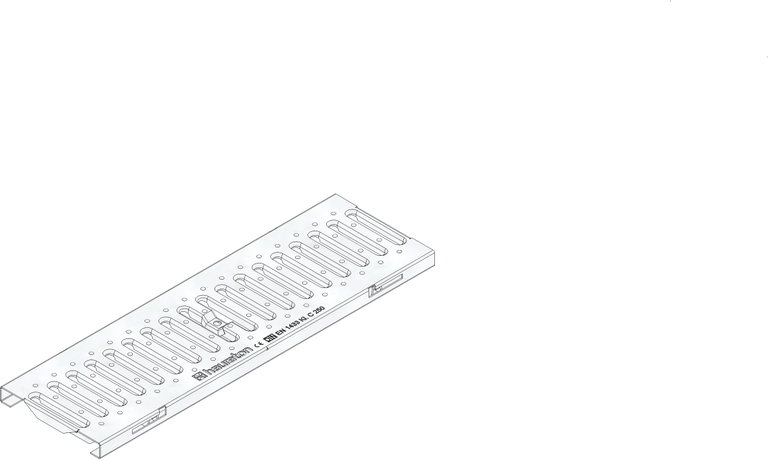

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28170
Length
500 mm
Width
149 mm
Height
27 mm
Weight
2.53 kg
Material
Stainless steel 1.4301
Intake cross-section
281.0 cm²/m
Nominal size
100
Inlet opening
10
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Reinforced slotted grating, stainless steel, cl. C 250, KS 100, 0,5 m
Product description
KS 100 - Reinforced slotted grating, stainless steel, loading capacity from A 15 - C 250 acc. DIN 19580/EN 1433, CE-conform, length: 500 mm, Art.-no. 28170
Packaging unit
384
Declaration of Performance
