Article No. 28071
FASERFIX KS 100, class E 600
Mesh grating MW 11/30 mm, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

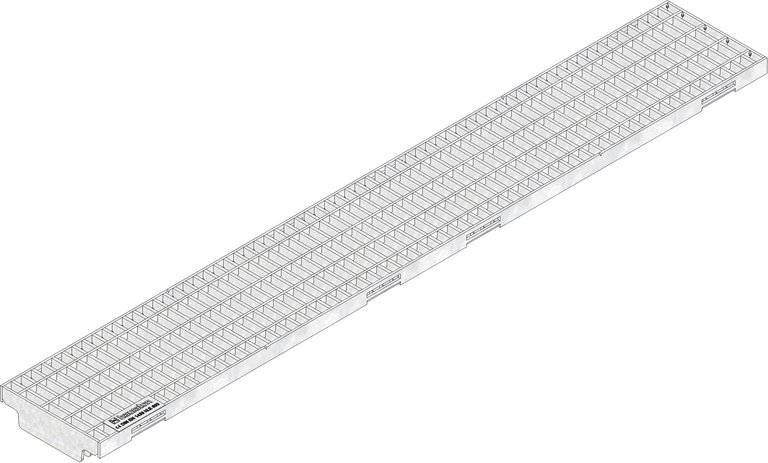

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28071
Length
1000 mm
Width
149 mm
Height
40 mm
Weight
11.00 kg
Material
hot-dip galvanised steel
Intake cross-section
695.0 cm²/m
Nominal size
100
Inlet opening
30
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 11/30, galvanised cl. E 600, KS 100, 1 m
Product description
KS 100 - Mesh grating, MW 11/30, galvanised, loading capacity A 15 - E 600 acc. DIN 19580/EN 1433, CE-conform, length 1000mm, Art.-no. 28071
Packaging unit
96
Declaration of Performance
