Article No. 28571
FASERFIX KS 100, class E 600
Mesh grating MW 11/30 mm, stainless steel, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

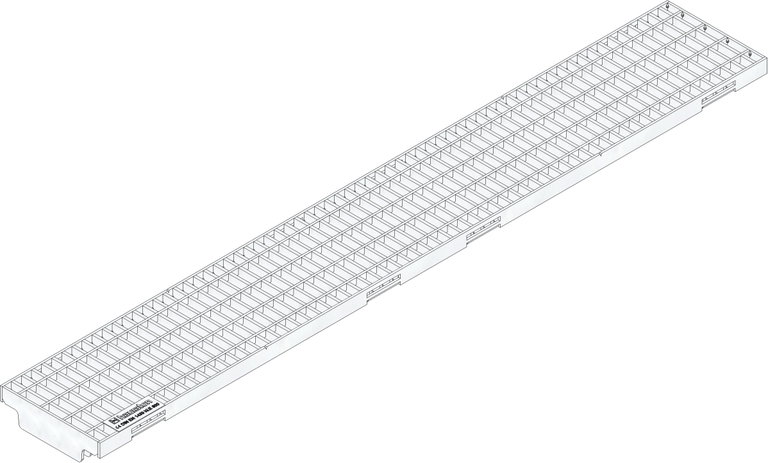

Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
28571
Length
1000 mm
Width
149 mm
Height
40 mm
Weight
11.40 kg
Material
Stainless steel 1.4301
Intake cross-section
695.0 cm²/m
Nominal size
100
Inlet opening
30
Fixing type
SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 11/30, stainless steel, class E 600, KS 100, 1 m
Product description
KS 100 - Mesh grating MW 11x30, stainless steel, loading capacity from A 15 - E 600 acc. DIN 19580/EN 1433, CE-conform, L. 1000 mm, Art.-No. 28571
Packaging unit
96
Declaration of Performance
