Article No. 8200
FASERFIX KS 100 up to load class F 900
Type 01, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

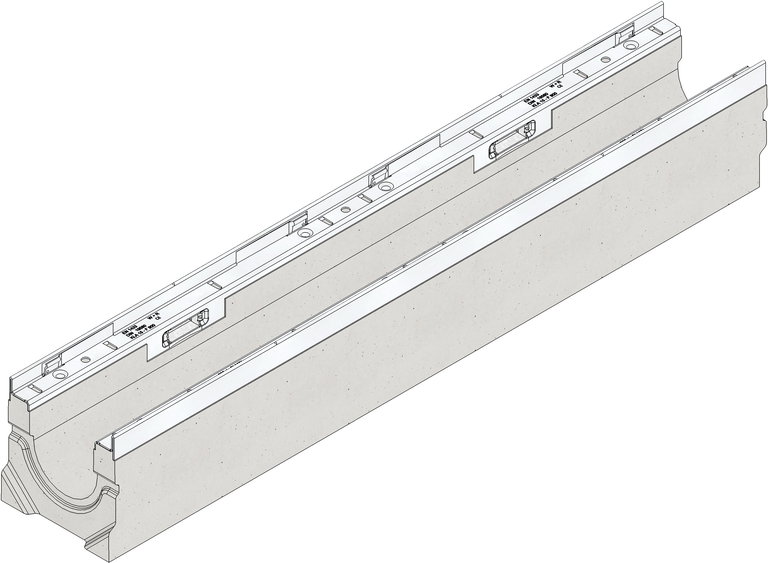

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8200
Length
1000 mm
Width
160 mm
Height
160 mm
Weight
33.15 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
88 cm²
Fall
-
Sales text
Locking handle, SIDE-LOCK
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
Stainless steel 1.4301
Sales text
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel body type 01 with edge frames made of stainless steel, 1 m
Sales text
FASERFIX KS 100 type 01 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE-conform, with stainless steel angle housing CNS 1.4301 (AISI 304) and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x160x160 mm, item no. 8200
Sales text
28
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Concrete class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Asphalt class E 600 - F 900
Concrete class A 15 - F 900
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
